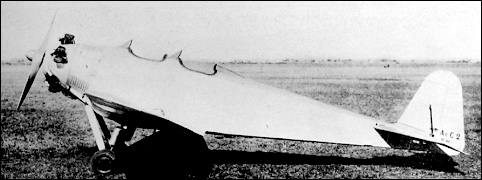

FMA Ae.C.2
1932
Back to the Virtual Aircraft Museum
  Virtual Aircraft Museum / Argentina / FMA

FMA Ae.C.2

There is no text information for this aircraft at the moment.


Specification
 CREW1
 PASSENGERS2
 ENGINE1 x 165hp Wright Whirlwind R-54013
 WEIGHTS
    Take-off weight1130 kg2491 lb
    Empty weight650 kg1433 lb
 DIMENSIONS
    Wingspan12.00 m39 ft 4 in
    Length7.90 m26 ft 11 in
    Height2.70 m9 ft 10 in
    Wing area19.00 m2204.51 sq ft
 PERFORMANCE
    Max. speed220 km/h137 mph
    Cruise speed175 km/h109 mph
    Ceiling5000 m16400 ft
    Range1500 km932 miles

Comments
KenBrit, 30.04.2012

The FMA AeC.2 was a light utility aircraft built in Argentina in the early 1930s, and also produced as a military trainer and observation aircraft under the designations AeME.1, AeMO.1, AeMOe.1 and AeMOe.2. The design was derived from the AeC.1, but instead of an enclosed cabin, featured two open cockpits in tandem. Only two of the civil AeC.2s were built, but these were followed by seven AeME.1 trainers. Six of the AeME.1s, plus one of the AeC.2s, participated in a long-distance publicity tour of Brazil as part of the "Sol de Mayo" squadron.

In 1934, a version with a revised empennage, the AeMO.1, was developed as an observation machine, 41 examples of which were delivered from July onwards. Some of these were armed with a trainable .303 Vickers machine gun in the observer's cockpit, and some with twin synchronised machine guns in the forward fuselage.

Six AeMOe.1s followed, for crew training in the Observation role, were generally similar in design but featuring a NACA cowling for the engine, and then the definitive AeMOe.2 version appeared in 1937 with a further refined empennage, 61 examples of which were built.

Also based on the AeMOe.1, the sole AeMS.1 was an air ambulance version with an enclosed cabin that could carry four stretchers and an attendant.
