De Havilland Australia DHA-3 Drover
1948
Back to the Virtual Aircraft Museum
  EIGHT-SEAT UTILITY TRANSPORTVirtual Aircraft Museum / Australia / De Havilland Australia

De Havilland Australia DHA-3 Drover

Australia's famous Flying Doctor Service began in the late 1920s, with QANTAS using a D.H.50 to fly the world's first service of this type; in the first year the doctor made 50 flights, saw 250 patients and covered 32,187km.

A series of other standard aircraft continued the service. Something larger was required after World War II, and the new de Havilland Australia DHA-2 Drover eight-seat light transport was chosen. The Drover was based broadly on the D.H.104 Dove, but had three 108kW Gipsy Major 10 Mk 2 engines and tail-wheel landing gear. The prototype Drover flew on 23 January 1948 and versions were offered with variable- and fixed-pitch propellers as the Drover 1 and Drover 1F respectively; the Drover 2 had double-slotted flaps. Limited construction began in 1949 and 20 had been built when production ended in September 1953.

Customers for the Drover included Qantas, Trans-Australian Airlines and Fiji Airways, the last being the only export customer. In Royal Flying Doctor Service the Drover carried two medical staff and two stretcher patients; all six aircraft were converted in 1960 to have Avco Lycoming O-360 engines under the revised designation Drover 3.

3-View

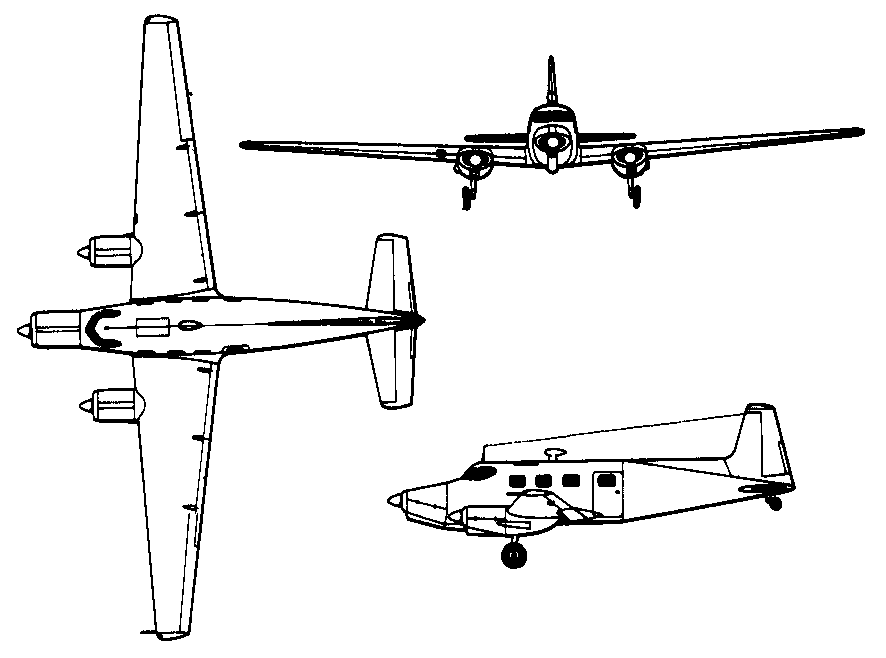

De Havilland Australia DHA-3 DroverA three-view drawing (886 x 658)


Specification
 MODELDrover 3
 ENGINE3 x Avco Lycoming O-360-A1A flat-four pistone engines, 134kW
 WEIGHTS
    Take-off weight2948 kg6499 lb
    Empty weight1860 kg4101 lb
 DIMENSIONS
    Wingspan17.37 m56 ft 12 in
    Length11.13 m36 ft 6 in
    Height3.28 m10 ft 9 in
    Wing area30.19 m2324.96 sq ft
 PERFORMANCE
    Max. speed254 km/h158 mph
    Cruise speed225 km/h140 mph
    Ceiling6095 m20000 ft
    Range1448 km900 miles

Comments
Ed, hahajester(@)hotmail.com, 16.05.2008

lol typo, i was meant to say say "thanks heaps for YOUR help" :P

Ed, hahajester(@)hotmail.com, 16.05.2008

Hi there,
I would like to know what the wing structure of this plane is like? How are the spars and ribs arranged and are there any unique features on the wings that might make this plane special?
Also, if it ain't too much trouble, would this wing be any different to say the P-47 Thunderbolt Republic? (I'm doing a comparison of the two at the moment) Thanks heaps for you help.

Ed
