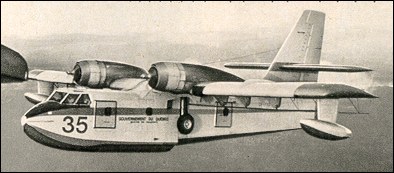

The amphibian plane designed especially for firefighting. The first prototype flew on October 23, 1967. About 140 built. Exported to France, Greece, Spain, Italy, Yugoslavia, Thailand and Venezuela.
| MODEL | CL-215 |
| ENGINE | 2 x Pratt & Whitney R-2800-CA3, 1566kW |
| WEIGHTS |
| Take-off weight | 17100-19731 kg | 37699 - 43500 lb |
| Empty weight | 12161 kg | 26811 lb |
| DIMENSIONS |
| Wingspan | 28.6 m | 94 ft 10 in |
| Length | 19.82 m | 65 ft 0 in |
| Height | 8.92 m | 29 ft 3 in |
| Wing area | 100.33 m2 | 1079.94 sq ft |
| PERFORMANCE |
| Cruise speed | 291 km/h | 181 mph |
| Range | 2095 km | 1302 miles |
| ARMAMENT | 5455kg of water |
 | A three-view drawing (592 x 822) |
| Steven Sparks, wa6bjp(@)aol.com, 04.11.2009 When you update this page, include the CL-415 Super-Scooper | | Mike Green, 22.07.2009 The later version of this all-Canadian aircraft was even more efficient, the radials being replaced with turbos. | | JOSE MIGUEL QUINTERO, COTEJOQ(@)HOTMAIL.COM, 01.07.2009 ESTE ES EL AVION MAS HERMOZO QUE VOLE DURANTE 35 DE MI CARRERA DE PILOTO SUS SIGLAS ERAN YV-O-INC-I Y YV-O-INC-2 LOGRE 74 BOMBARDEOS DE AGUA EN INCENDIOS VARIOS Y COMO TRANSPORTE DE PERSONAL POR TODO EL CANAL DE NAVEGACION DEL RIO ORINOCO EN VENEZUELA | | Steve Voiles, homefire1(@)gmail.com, 29.12.2008 Is there a way to locate scale drawings of the CL 215? Better yet is there a 3D graphic that can be revolved on a computer screen? | | Ande, andebrown(@)hotmail.com, 08.11.2007 I would like to know about the passenger carrying capabilities of this aircraft and where one can be physically seen. I would like to ferry people between New York city and the Hamptons. |
|
