Liuchow Kwangsi Type 3

Under the direction of Chee Wing Jeang, the Liuchow Mechanical and Aircraft Factory in the Chinese province of Kwangsi - which had achieved a measure of autonomy in 1937 - completed prototypes of two aircraft, the Kwangsi Types 2 and 3. Both were unequal-span biplanes with spruce and plywood wings, and fabric-covered welded steel-tube fuselages, and were respectively a tandem two-seat trainer and a single-seat lightweight fighter. The latter, the Type 3, was powered by an Armstrong Siddeley Cheetah IIA seven-cylinder radial rated at 260hp at 760m and carried an armament of a single 7.7mm machine gun synchronised to fire through the propeller. The Type 3 was flown in July 1937, but performance proved insufficient to justify further development.

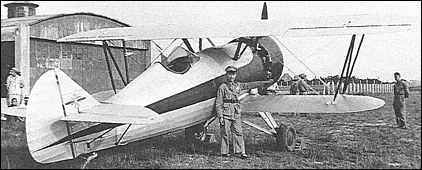

Liuchow Kwangsi Type 3

Specification
 WEIGHTS
  Take-off weight1043 kg2299 lb
  Empty weight760 kg1676 lb
 DIMENSIONS
  Wingspan8.00 m26 ft 3 in
  Length6.25 m21 ft 6 in
  Height2.50 m8 ft 2 in
 PERFORMANCE
  Max. speed283 km/h176 mph

3-View

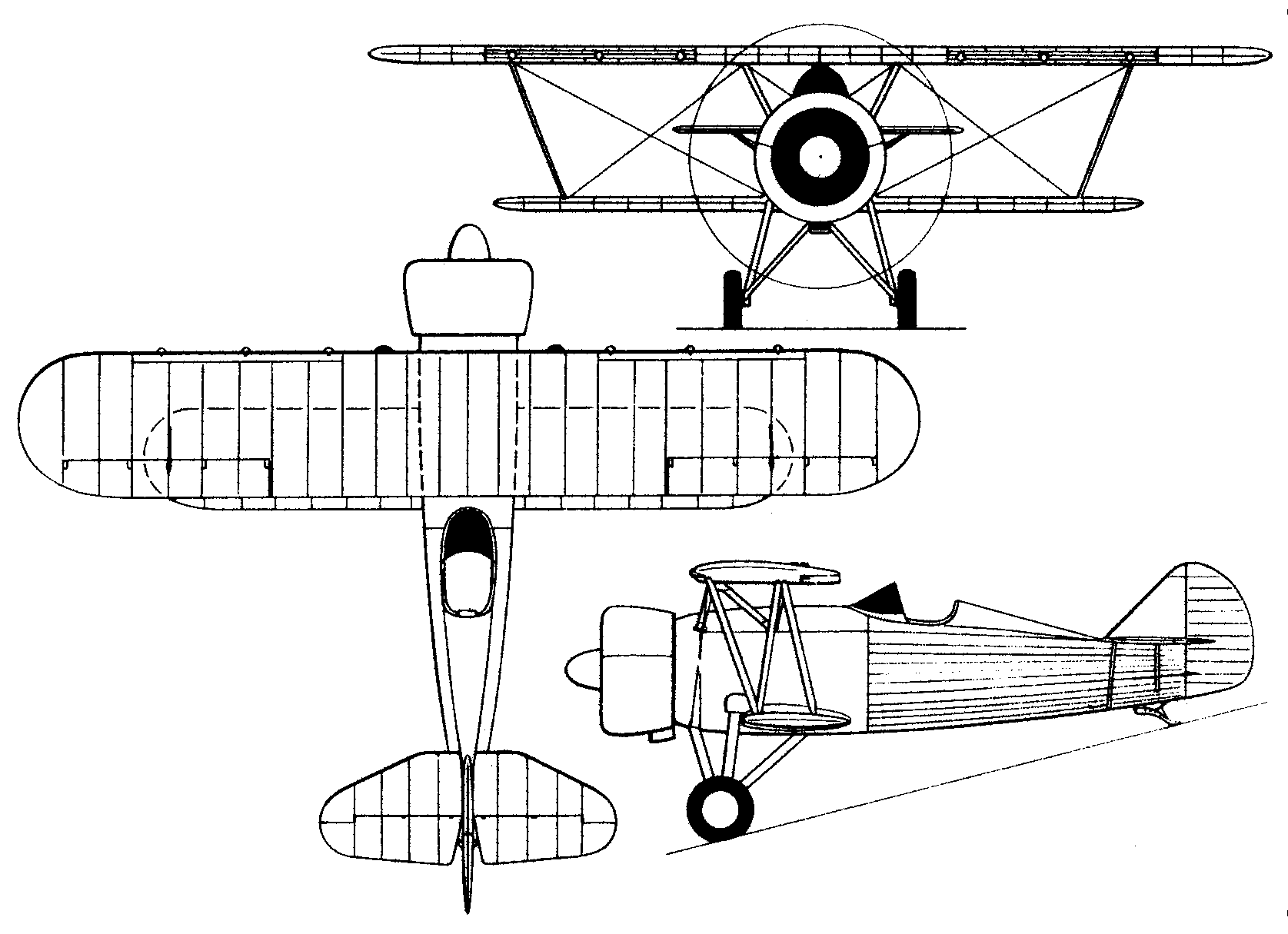

Liuchow Kwangsi Type 3A three-view drawing (1675 x 1215)
