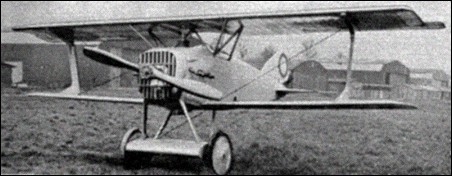

| The first single-seat fighter of original Czechoslovak design, the Ae 02 designed by Antonin Vlasak and Antonin Husnik was built by the Aero Tovarna Letadel A single-bay biplane with I-type interplane struts and ailerons on the upper wing only, the Ae 02 was of mixed construction with fabric-covered wooden wings and a dural-frame fuselage. Powered by an Hispano-Suiza HS 8Ba eight-cylinder vee-type engine rated at
220hp with all fuel accommodated by a tank between
the undercarriage mainwheels and carrying an armament
of two 7.7mm Vickers machine guns, the Ae 02
was flown for the first time in 1920. Piloted by Josef
Novak, the Ae 02 was adjudged winner of the 1st International
Flying Meeting held in Czechoslovakia in 1921,
but only one prototype was completed, further development
continuing with the Ae 04.

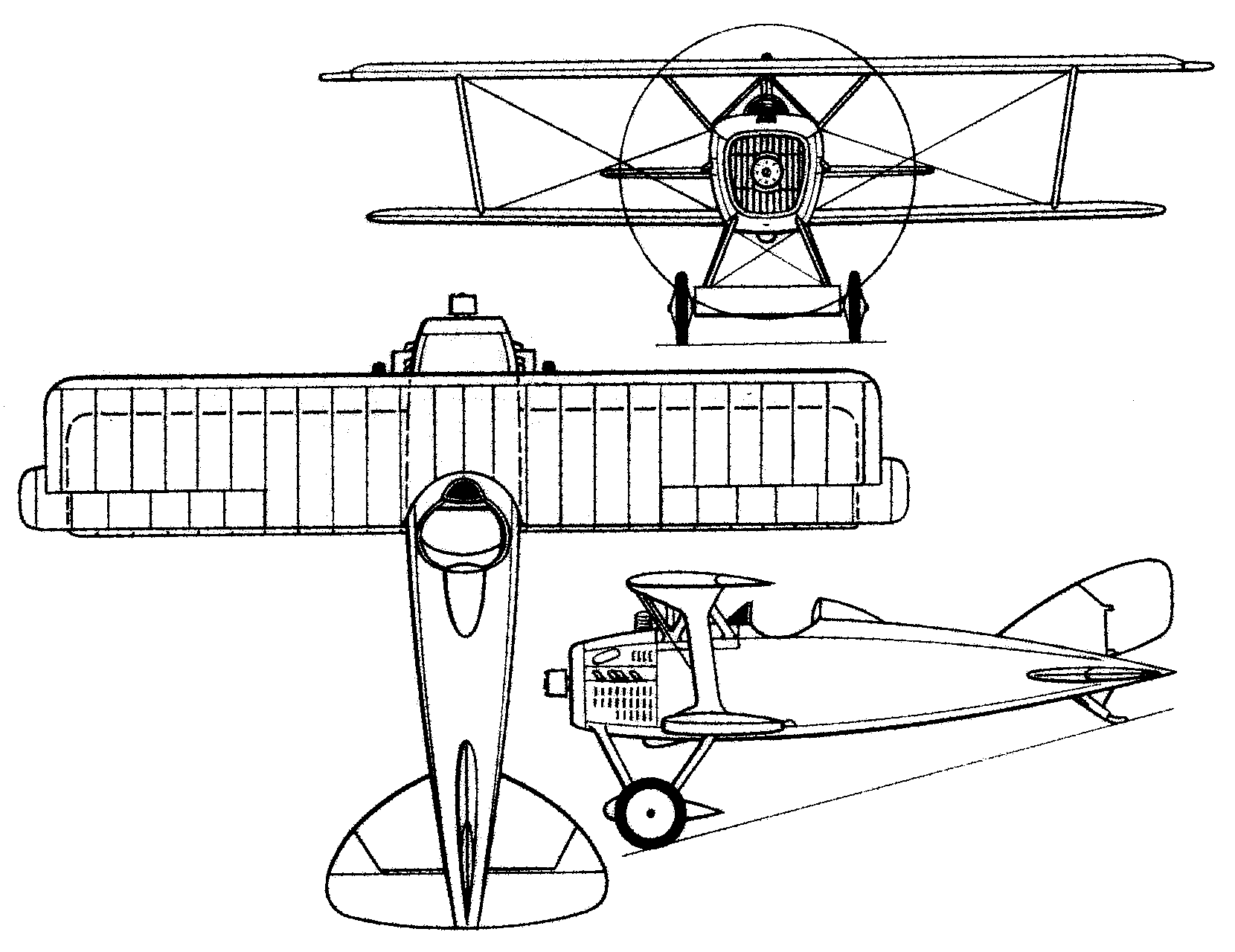

 | A three-view drawing (1660 x 1280) |
| MODEL | Ae.02 |
| CREW | 1 |
| ENGINE | 1 x 220hp Hispano Suiza 8Ba |
| WEIGHTS |
| Take-off weight | 945 kg | 2083 lb |
| Empty weight | 675 kg | 1488 lb |
| DIMENSIONS |
| Wingspan | 7.70 m | 25 ft 3 in |
| Length | 5.45 m | 18 ft 11 in |
| Height | 2.70 m | 9 ft 10 in |
| Wing area | 16.70 m2 | 179.76 sq ft |
| PERFORMANCE |
| Max. speed | 225 km/h | 140 mph |
| Cruise speed | 185 km/h | 115 mph |
| ARMAMENT | 2 x 7.7mm |
