Avia BH-33

1928

Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / Czechoslovakia / Avia

P.W.S. A

During the course of 1926,Avia tested the Gnome- Rhone version of the Bristol Jupiter nine-cylinder radial air-cooled engine in a BH-21 airframe, and elected to employ this power plant for a new fighter, the BH-33. This, the last fighter design to be produced by Benes and Hajn for the Avia concern, was the first Avia fighter to feature a fixed tail fin from the outset, and commenced flight trials in 1927. It was ordered into production for the Czechoslovak air arm with a Walter-built Jupiter VI rated at 543hp for take-off, armament comprising two 7.7mm machine guns. A manufacturing licence for the BH-33 was acquired by Poland in 1928, PZL building 10 pre-production fighters of this type and PWS building some 50 production examples for the Polish Air Force as the PWS A from 1930. Three BH-33s were supplied to Belgium in 1929.

3-View

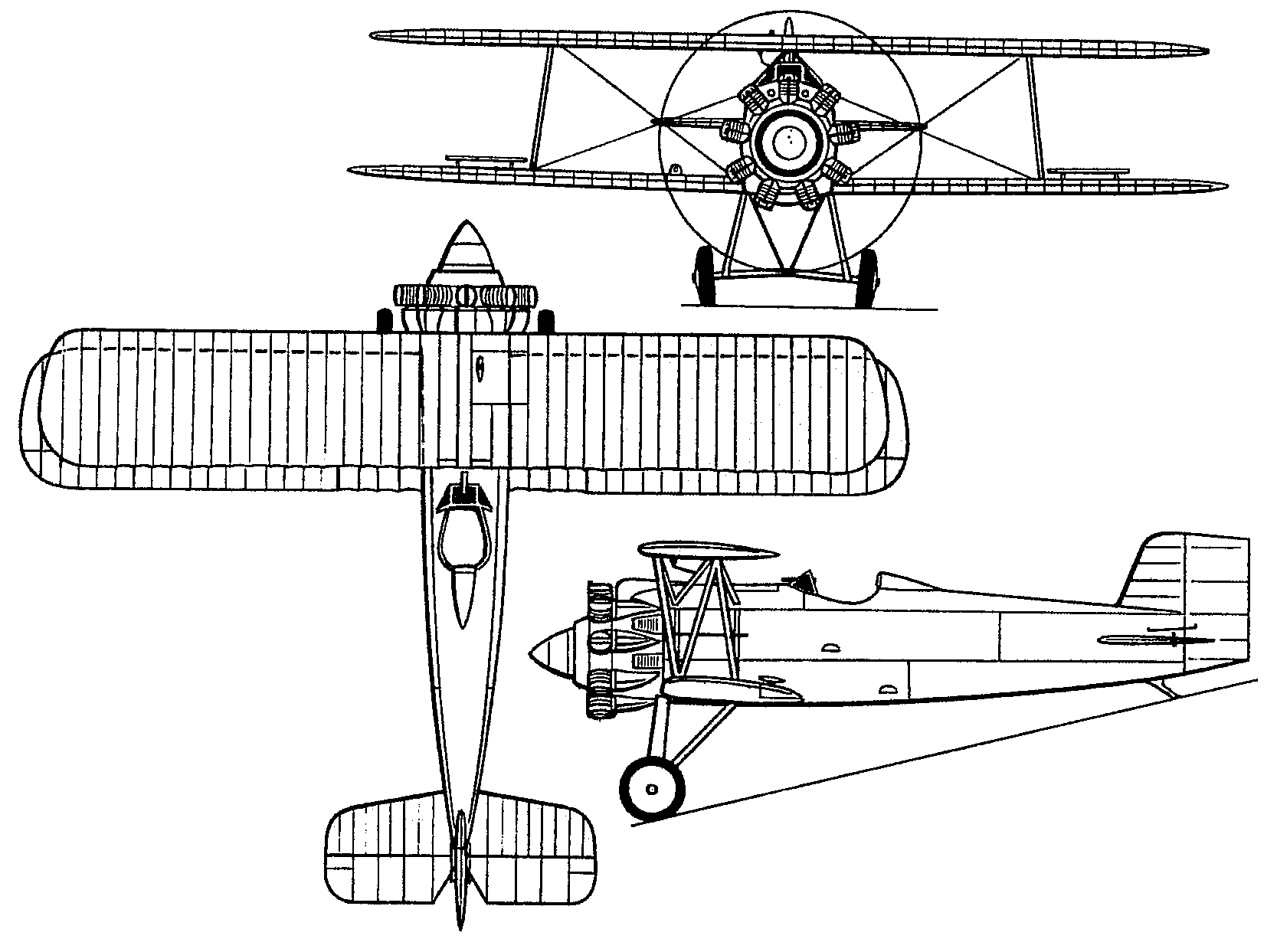

Avia BH-33A three-view drawing (1667 x 1243)

Specification
 CREW1
 WEIGHTS
  Take-off weight1253 kg2762 lb
  Empty weight830 kg1830 lb
 DIMENSIONS
  Wingspan8.90 m29 ft 2 in
  Length7.04 m23 ft 1 in
  Wing area22.20 m2238.96 sq ft
 PERFORMANCE
  Max. speed285 km/h177 mph
 ARMAMENT2 x 7.7mm
