Letov Sh 31


Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / Czechoslovakia / Letov

Letov Sh 31

There is no text information for this aircraft at the moment.

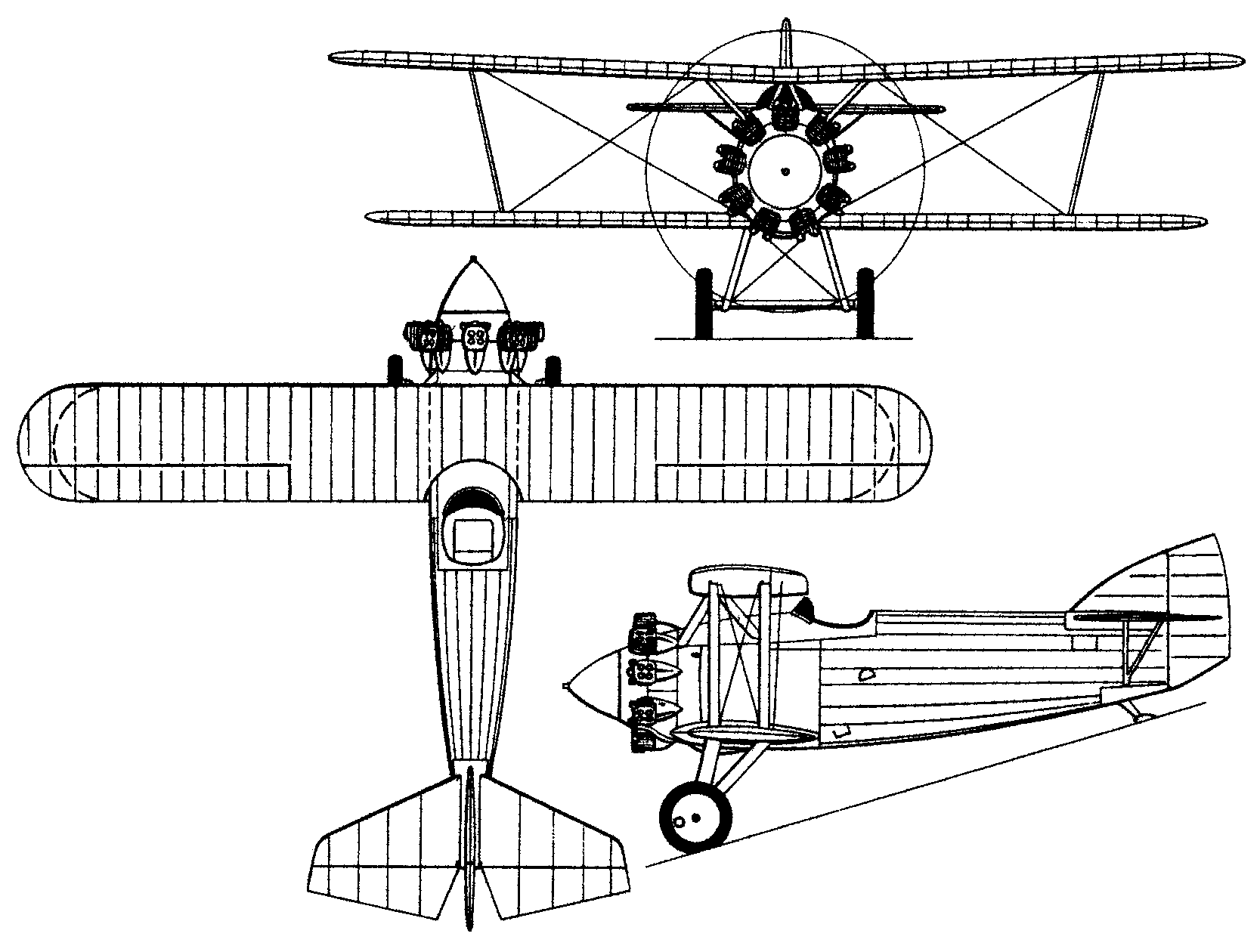

Letov Sh 31A three-view drawing (1667 x 1260)

 ENGINE1 x 450hp Walter Jupiter
  Take-off weight1254 kg2765 lb
  Empty weight830 kg1830 lb
  Wingspan9.80 m32 ft 2 in
  Length7.15 m23 ft 5 in
  Wing area21.80 m2234.65 sq ft
  Max. speed254 km/h158 mph
  Cruise speed225 km/h140 mph
  Ceiling8000 m26250 ft
  Rate of climb500 m/min1650 ft/min
  Range320 km199 miles
 ARMAMENT2 x 7.7mm

Barry, 20.04.2016 17:09

The initial production model of the "31" of which 33 were built seeing service with the Czechoslovakian Air Force. A further 3 S.131 were built featuring a Pratt & Whitney Hornet engine.
