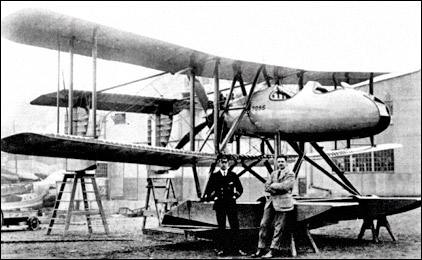

Air Department A.D.1 Navyplane

There is no text information for this aircraft at the moment.

3-View
Air Department A.D.1 NavyplaneA three-view drawing (1323 x 1251)


Specification
 CREW2
 ENGINE1 x 150hp Smith Static 10-cylinder air-cooled radial engine
 WEIGHTS
    Take-off weight1408 kg3104 lb
    Empty weight953 kg2101 lb
 DIMENSIONS
    Wingspan10.97 m36 ft 0 in
    Length8.46 m28 ft 9 in
    Height3.89 m13 ft 9 in
    Wing area33.82 m2364.04 sq ft
 PERFORMANCE
    Max. speed121 km/h75 mph
