Armstrong Whitworth A.W.19

One prototype, first flown on 26 February 1934. No production.

Armstrong Whitworth A.W.19


Specification
 ENGINE1 x 810hp Armstrong Siddeley Tiger VI
 WEIGHTS
    Take-off weight3969 kg8750 lb
    Empty weight1950 kg4299 lb
 DIMENSIONS
    Wingspan15.14 m50 ft 8 in
    Length12.85 m42 ft 2 in
    Height3.96 m13 ft 0 in
    Wing area60.78 m2654.23 sq ft
 PERFORMANCE
    Max. speed262 km/h163 mph
    Ceiling6400 m21000 ft

3-View

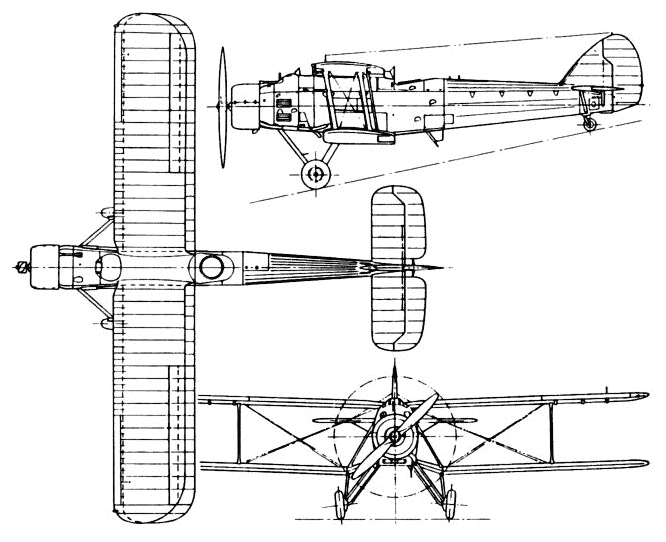

Armstrong Whitworth A.W.19A three-view drawing (666 x 542)

Comments
Barry, 15.06.2016

Nothing wrong with this aircraft, only one of which was built flying for the first time on the 26th February 1934. In the meantime Vickers had produced the Wellesley as a private venture and so impressed were the R.A.F. that it had a specification written round it and far as the AW 19 was concerned that was that.

zhangli, 20.06.2011

One prototype, first flown on 26 February 1934. No production.
