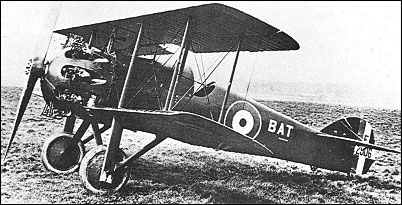

B.A.T. F.K.25 Basilisk

The last single-seat fighter of Koolhoven design built by the British Aerial Transport Company, the F.K.25 Basilisk was designed around the 350hp A.B.C. Dragonfly I nine-cylinder radial engine and carried the usual armament of twin synchronised 7.7mm Vickers guns. Of wooden construction with a monocoque fuselage, the Basilisk featured a hood-like fairing, ahead of the cockpit, which enclosed the guns and shielded the pilot. Three prototypes were ordered, the first of these flying during the summer of 1918. The second prototype, completed in 1919, differed from its predecessor primarily in having a deeper fairing ahead of the cockpit. Further work on the Basilisk was abandoned at the end of 1919.

3-View
B.A.T. F.K.25 BasiliskA three-view drawing (1280 x 962)


Specification
 WEIGHTS
    Take-off weight990 kg2183 lb
    Empty weight659 kg1453 lb
 DIMENSIONS
    Wingspan7.72 m25 ft 4 in
    Length6.22 m20 ft 5 in
    Height2.49 m8 ft 2 in
    Wing area19.69 m2211.94 sq ft
 PERFORMANCE
    Max. speed228 km/h142 mph
