Beardmore W.B.26
1925
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / United Kingdom / Beardmore

Beardmore W.B.26

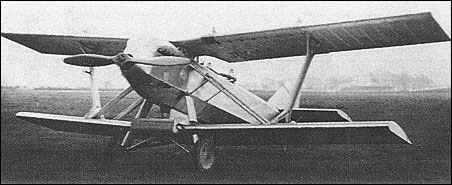

In the early 'twenties, William Beardmore & Company initiated work on a tandem two-seat fighter under Latvian contract. Of mixed construction with plywood skinning and designated W.B.26, the fighter was designed by W.S. Shackleton and, powered by a 360hp Rolls-Royce Eagle IX liquid-cooled engine, was flown for the first time in 1925. Featuring aerofoil-section interplane bracing struts and angularly-clean lines, the W.B.26 had two Constantinesco-synchronised Beardmore- Farquhar machine guns and a similar weapon on a Scarff mounting in the rear cockpit. The slab-sided fuselage was suspended between the wings, the lower wing being faired into the fuselage by a Lamblin radiator block. Despite a creditable performance only the single prototype of the W.B.26 was built.

3-View

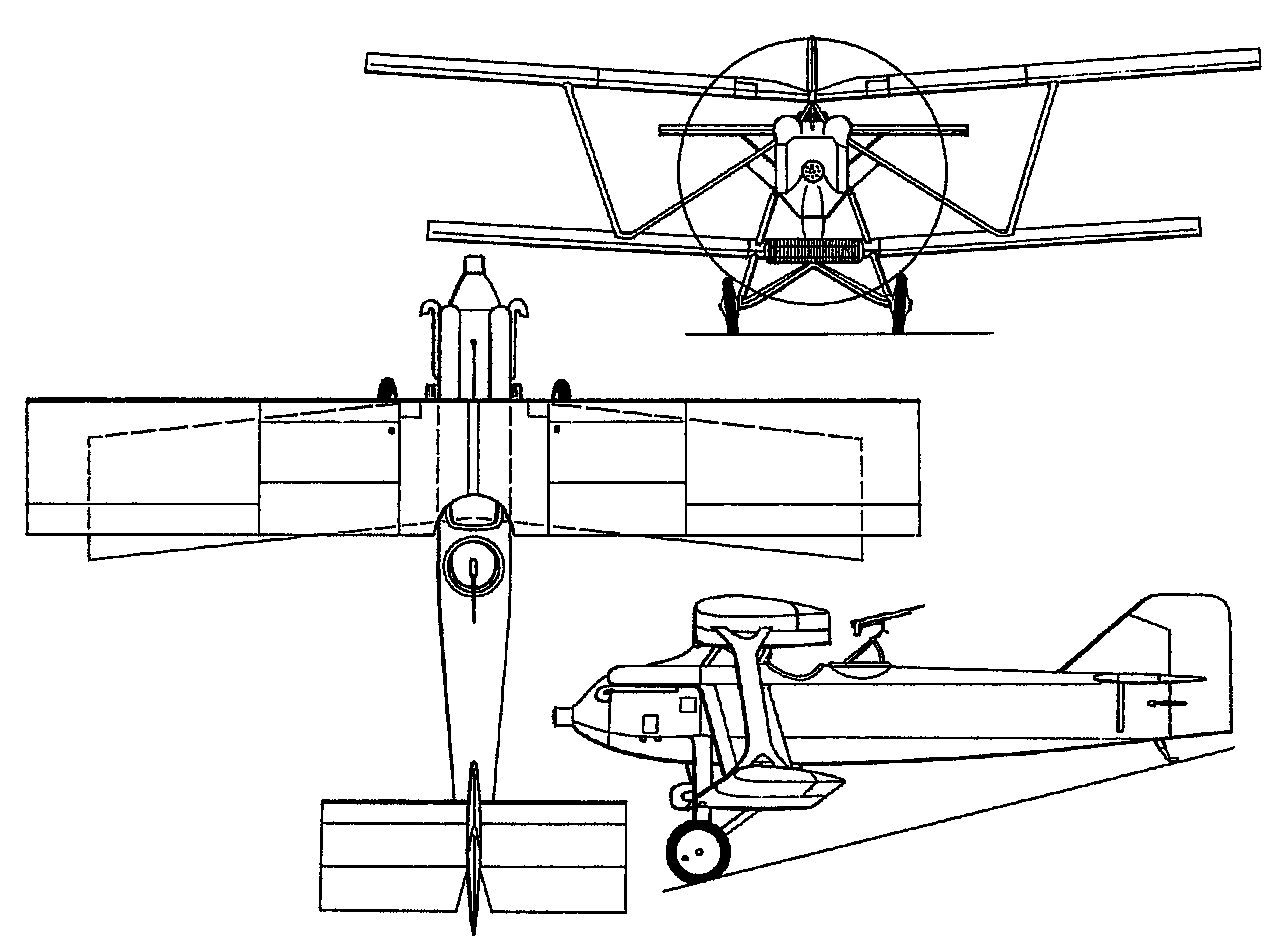

Beardmore W.B.26A three-view drawing (1280 x 948)


Specification
 WEIGHTS
    Take-off weight1805 kg3979 lb
    Empty weight1159 kg2555 lb
 DIMENSIONS
    Wingspan11.28 m37 ft 0 in
    Wing area33.07 m2355.96 sq ft
 PERFORMANCE
    Max. speed233 km/h145 mph
