Blackburn B-3
1932
Back to the Virtual Aircraft Museum
  TORPEDO BOMBERVirtual Aircraft Museum / United Kingdom / Blackburn

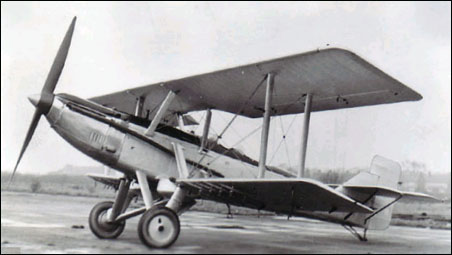

Blackburn B-3

Two prototypes, first flown on 8 March 1932. No production.

3-View
Blackburn B-3A three-view drawing (600 x 508)


Specification
 MODELM.1/30A
 CREW2
 ENGINE1 x 825hp Rolls-Royce Buzzard IIIMS
 WEIGHTS
    Take-off weight4718 kg10401 lb
    Empty weight2787 kg6144 lb
 DIMENSIONS
    Wingspan15.09 m50 ft 6 in
    Length12.14 m40 ft 10 in
    Height4.45 m15 ft 7 in
    Wing area60.48 m2651.00 sq ft
 PERFORMANCE
    Max. speed229 km/h142 mph
    Ceiling2789 m9150 ft
 ARMAMENT2 x 7.7mm machine-guns, 4 x 250kg bombs or a torpedo
