Blackburn T.1 Swift

1920

Back to the Virtual Aircraft Museum
  TORPEDO BOMBERVirtual Aircraft Museum / United Kingdom / Blackburn

Blackburn T.1 Swift

There is no text information for this aircraft at the moment.

Blackburn T.1 Swift

Specification
 ENGINE1 x 450hp Napier Lion IB
 WEIGHTS
  Take-off weight2860 kg6305 lb
  Empty weight1612 kg3554 lb
 DIMENSIONS
  Wingspan14.78 m49 ft 6 in
  Length10.82 m36 ft 6 in
  Height3.73 m12 ft 3 in
  Wing area66.89 m2720.00 sq ft
 PERFORMANCE
  Max. speed171 km/h106 mph
  Ceiling4572 m15000 ft
  Range564 km350 miles
 ARMAMENT4 x 100kg bombs or a torpedo

3-View

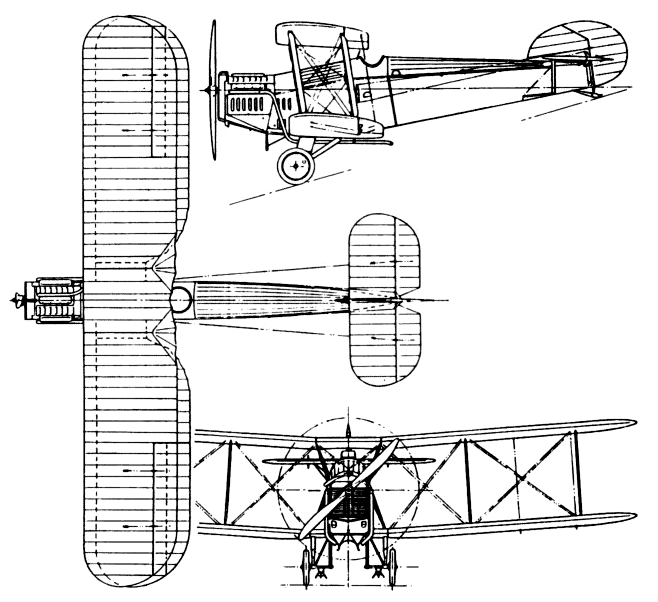

Blackburn T.1 SwiftA three-view drawing (658 x 602)
