Boulton-Paul P.10
1919
Back to the Virtual Aircraft Museum
  Virtual Aircraft Museum / United Kingdom / Boulton-Paul

Boulton-Paul P.10

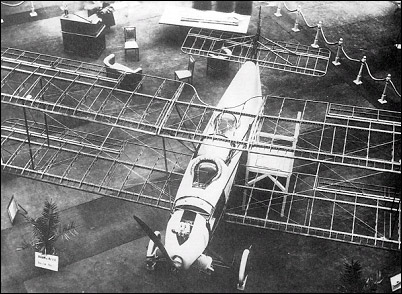

The P.10 on display at the 1919 Paris Air Show. It was the sensation of the Show, but there is no evidence that it was ever completed and flown. Like the "concept cars" often displayed at the Motor Show it had proven the techniques, but was not intended for production.


Specification
 MODELP.10 (performance estimated)
 ENGINE1 x 100hp Cosmos Lucifer
 WEIGHTS
    Take-off weight772 kg1702 lb
    Empty weight501 kg1105 lb
 DIMENSIONS
    Wingspan9.14 m30 ft 0 in
    Length7.92 m26 ft 0 in
    Height3.66 m12 ft 0 in
    Wing area28.71 m2309.03 sq ft
 PERFORMANCE
    Max. speed167 km/h104 mph
    Ceiling4267 m14000 ft
