Boulton-Paul P.33 Partridge

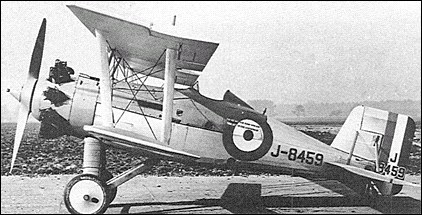

Evolved to meet the requirements of Specification F.9/26, eventually satisfied by the Bristol Bulldog, the Partridge, designed by J D North, was of all-metal construction and its structure, surprisingly, was made up in part of components already standardised for the P.29 Sidestrand bomber. Flown for the first time in 1928 with a 440hp Bristol Jupiter VII nine-cylinder radial (which it was intended to replace with the Mercury II in the unrealised Partridge III), it carried the standard armament of two 7.7mm Vickers machine guns in lateral fuselage bulges. The Partridge was initially flown with ailerons on the top wing only, but similar control surfaces were later introduced on the lower wing also. Only one prototype was built.

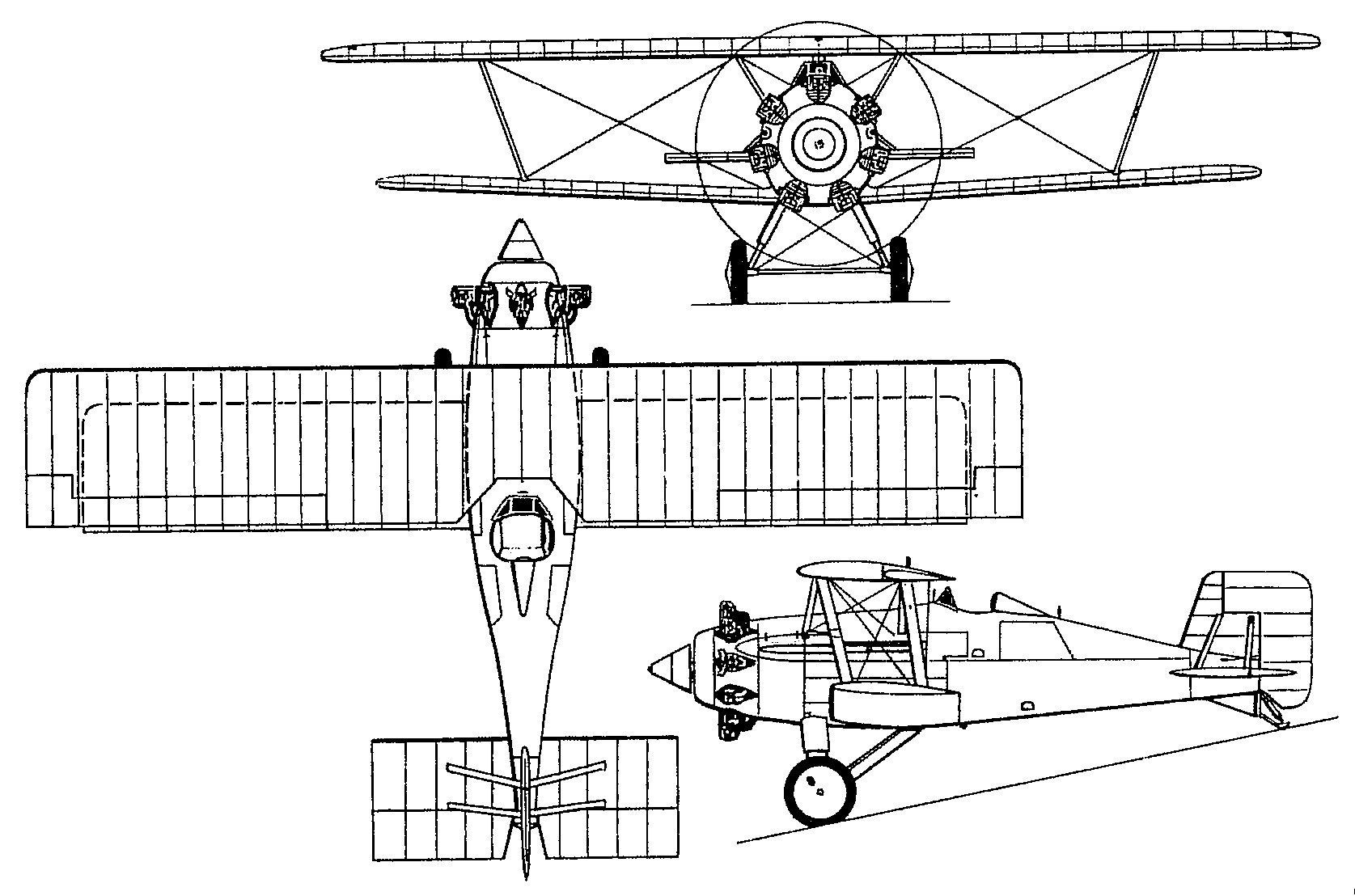

3-View
Boulton-Paul P.33 PartridgeA three-view drawing (1675 x 1108)


Specification
 WEIGHTS
    Take-off weight1405 kg3098 lb
    Empty weight917 kg2022 lb
 DIMENSIONS
    Wingspan10.67 m35 ft 0 in
    Length7.03 m23 ft 1 in
    Wing area28.89 m2310.97 sq ft
 PERFORMANCE
    Max. speed269 km/h167 mph
