Fairey Fawn
1923
Back to the Virtual Aircraft Museum
  LIGHT DAY BOMBERVirtual Aircraft Museum / United Kingdom / Fairey

Fairey Fawn

Developed from the Pintail, the Fawn was a light bomber and reconnaissance aircraft designed to fill the gap between the de Havilland D.H.9A and Hawker Horsley/Fairey Fox. First flown in prototype form in March 1923, subsequent production Fawns had poor performance and, unlike their Virginia heavy-bomber contemporary, remained in service with the RAF for only a few years. Production amounted to 75 aircraft, made up of five prototype/pre-production aircraft, 50 350kW Napier Lion II-engined Fawn Mk IIs and 20 Lion V-engined Mk Ills.

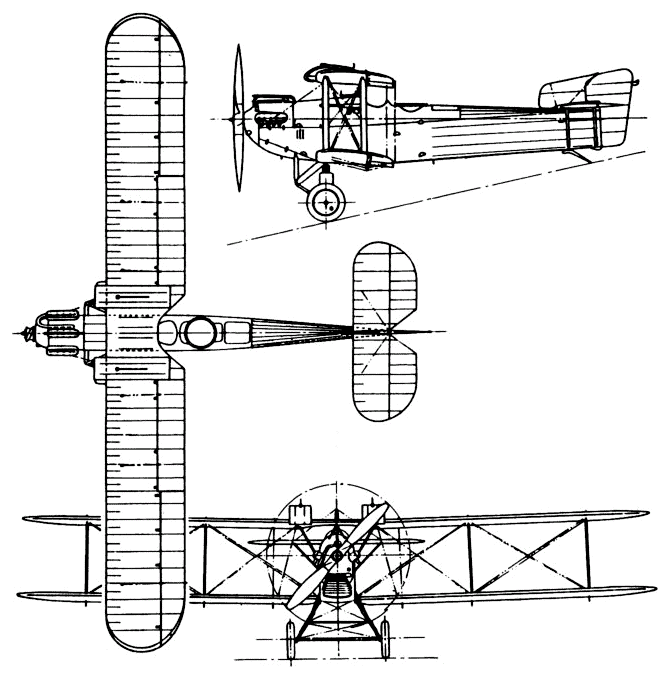

3-View
Fairey FawnA three-view drawing (670 x 676)


Specification
 MODELFawn III
 ENGINE1 x 468hp Napier Lion V
 WEIGHTS
    Take-off weight2649 kg5840 lb
    Empty weight1580 kg3483 lb
 DIMENSIONS
    Wingspan15.21 m50 ft 11 in
    Length9.78 m32 ft 1 in
    Height3.63 m12 ft 11 in
    Wing area51.10 m2550.04 sq ft
 PERFORMANCE
    Max. speed184 km/h114 mph
    Ceiling4221 m13850 ft
    Range1047 km651 miles
 ARMAMENT2-3 x 7.7mm machine-guns, 2 x 100kg or 4 x 50kg bombs

Fairey Fawn
