There is no text information for this aircraft at the moment.

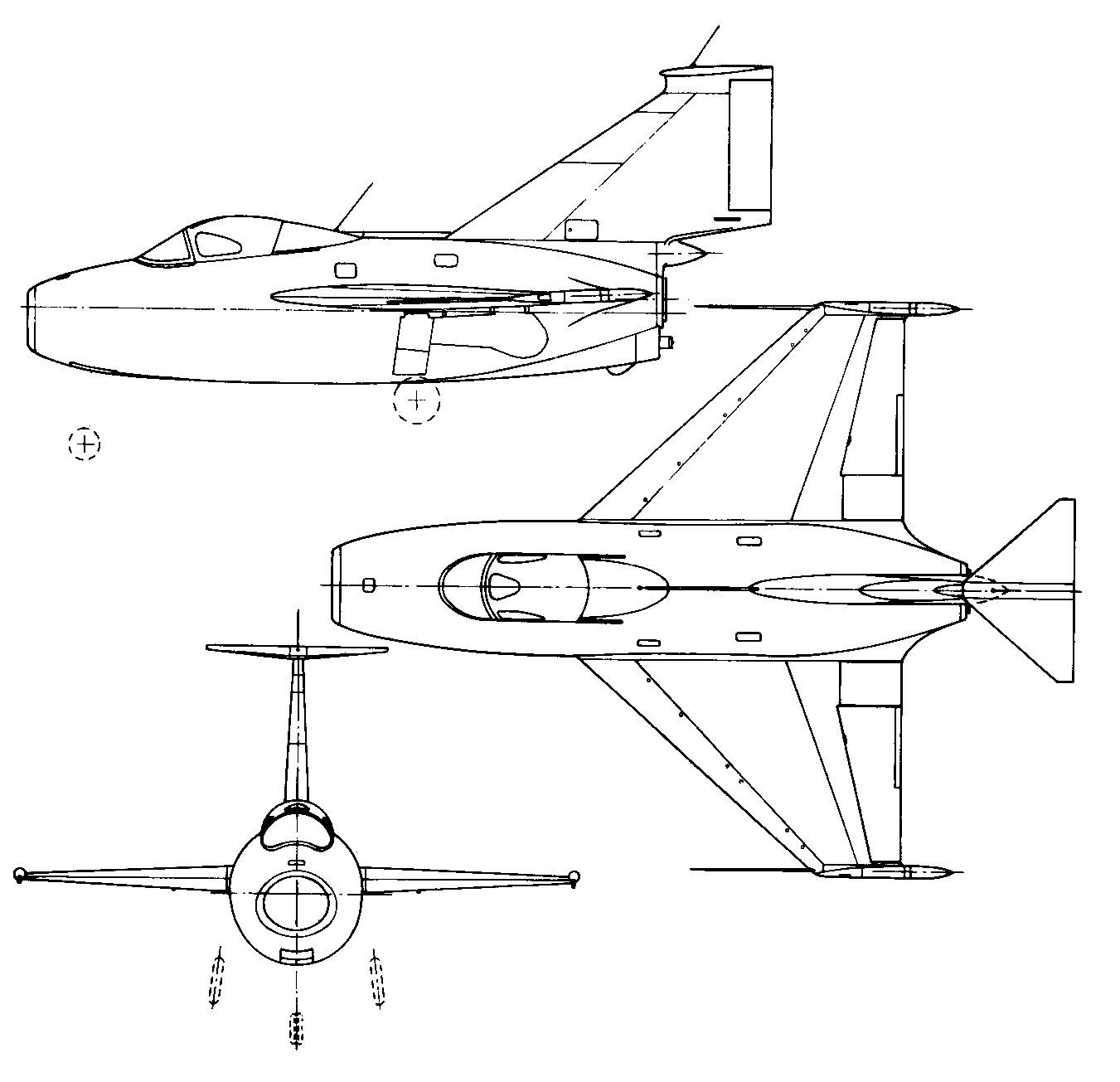

|A three-view drawing (1351 x 1305)|
| Empty weight||3084 kg||6799 lb|
| Wingspan||5.95 m||20 ft 6 in|
| Length||7.99 m||26 ft 3 in|
| Max. speed||1011 km/h||628 mph|
|Pablus, e-mail, 27.04.2014||reply|
By the looks of it, it's actually a delta with a small pitch control vane at the top of the stabiliser.
|b flewitt, e-mail, 19.02.2013||reply|
There seems to be an awful lot of fuselage in front of the wings and tailplane.Looks like it might be unstable.
|lechrus, e-mail, 18.03.2010||reply|
My research leads me to believe that the wing skins may have been fabricated from Durestos, an asbestos felt reinforced phenolic resin, selected because it was cheaper and had a higher specific stiffness than the emerging glass fibre/polyester resin composite materials of the period. The higher skin temperatures of transonic flight might have also played a role. Talk about being ahead of its time.
|M Halle, e-mail, 03.10.2009||reply|
My father in law worked for Fairy Aviation then Fairey Engineering for 40 years - he has passed away and we are sorting though his effects. I came across a large technical document for a Prototype aircraft called the E.10/47 from 1950. The drawing of the plane looks similar to the FD1. Is there any organisation who collects this type of document?
|Uppy, e-mail, 02.10.2008||reply|
FD1. First flight March 12 1951. Delta-winged research plane. Control proved difficult.
