Fairey P.4/34
1937
Back to the Virtual Aircraft Museum
  LIGHT BOMBERVirtual Aircraft Museum / United Kingdom / Fairey

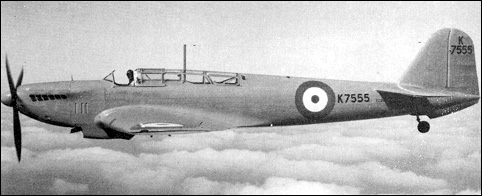

Fairey P.4/34

Two prototypes, first flown on 13 June 1937. No production.

Fairey P.4/34


Specification
 CREW2
 ENGINE1 x 1030hp Rolls-Royce Merlin I (later II)
 WEIGHTS
    Take-off weight3989 kg8794 lb
    Empty weight2908 kg6411 lb
 DIMENSIONS
    Wingspan14.43 m47 ft 4 in
    Length12.19 m40 ft 0 in
    Height4.29 m14 ft 1 in
 PERFORMANCE
    Max. speed456 km/h283 mph
    Ceiling8108 m26600 ft
    Range1481 km920 miles

3-View

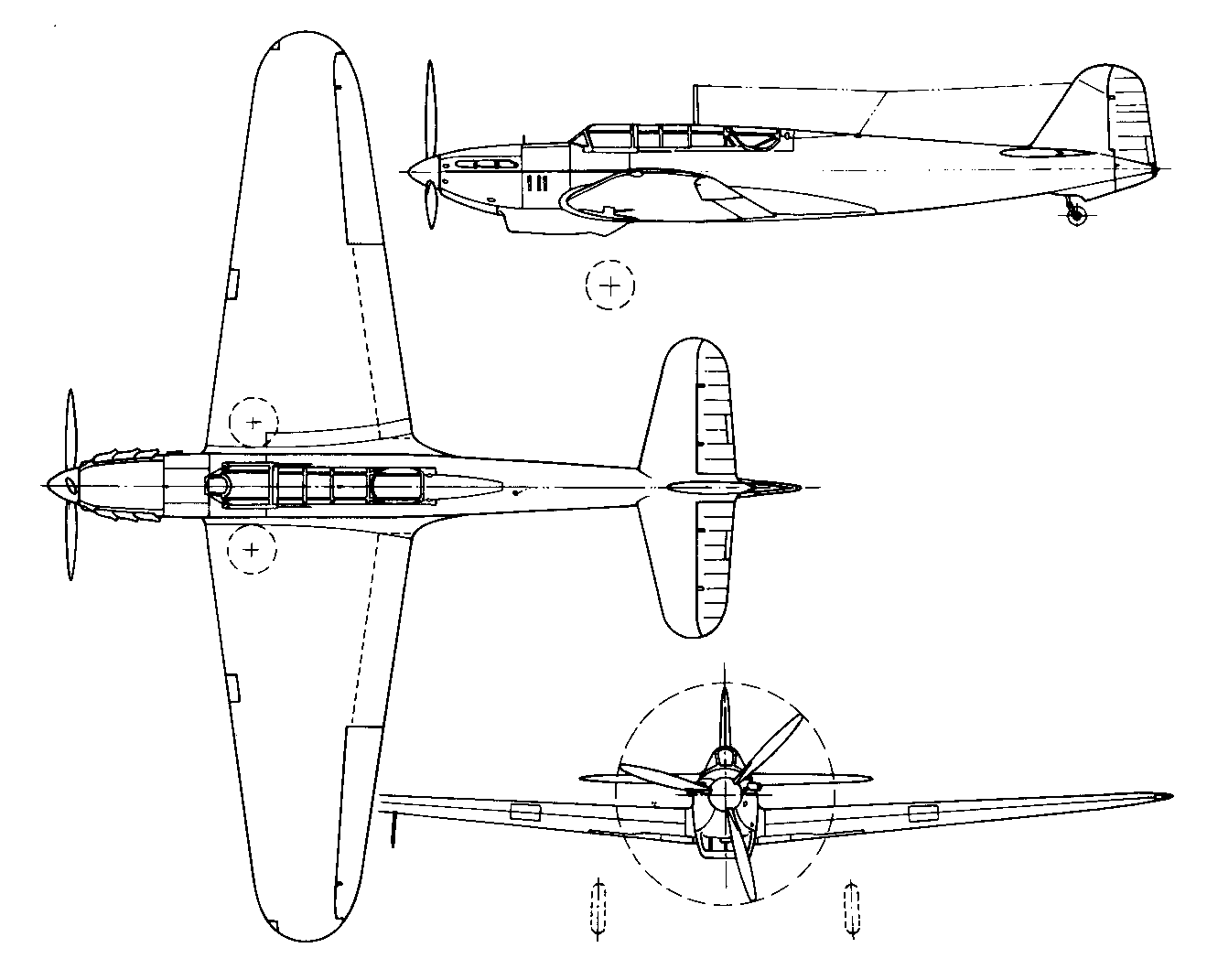

Fairey P.4/34A three-view drawing (1319 x 1071)

Comments
Klaatu83, 05.03.2011

Originally intended to replace the Fairey Battle light bomber, this airplane was re-modeled into a two-seat carrier-based fighter and became the Fairey Fulmar.

Peter, 04.11.2010

In 1936 my father(15/16 yo)accompanied his uncle to Manchester for a job interview. While walking passed a factory with an open gate they saw a modern aircraft sitting unaccompanied and walked in. They looked all round and touched it. Eventually a guard came out and told them off because it was a military secret. Great uncle Bob said if such a secret why was it just sitting there in the open. The guard mumbled and ordered them to leave. Dad has always believed it was a Fulmar, which he was later to see in action in the Med, but the date suggests it was this aircraft.
