Gloster E.1/44
1948
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / United Kingdom / Gloster

Gloster E.1/44

Late in 1944, Gloster began construction of an all-metal single-seat fighter designed around the RB.41 centrifugal- flow turbojet being developed by Rolls-Royce and to emerge as the Nene. To the requirements of Specification E.1/44, the first prototype was completed in July 1947, but suffered irreparable damage when the vehicle transporting it to the A&AEE was involved in an accident. A second prototype was completed and flown on 9 March 1948, this being powered by a 2268kg Nene 2 turbojet and having provision for four 20mm Hispano cannon. After initial flight testing the tail assembly was redesigned to improve handling. A third prototype was flown in 1949, and a fourth was nearing completion when it was decided that the single-engined fighter lacked the development potential of the twin-engined Meteor, further work being discontinued.

3-View

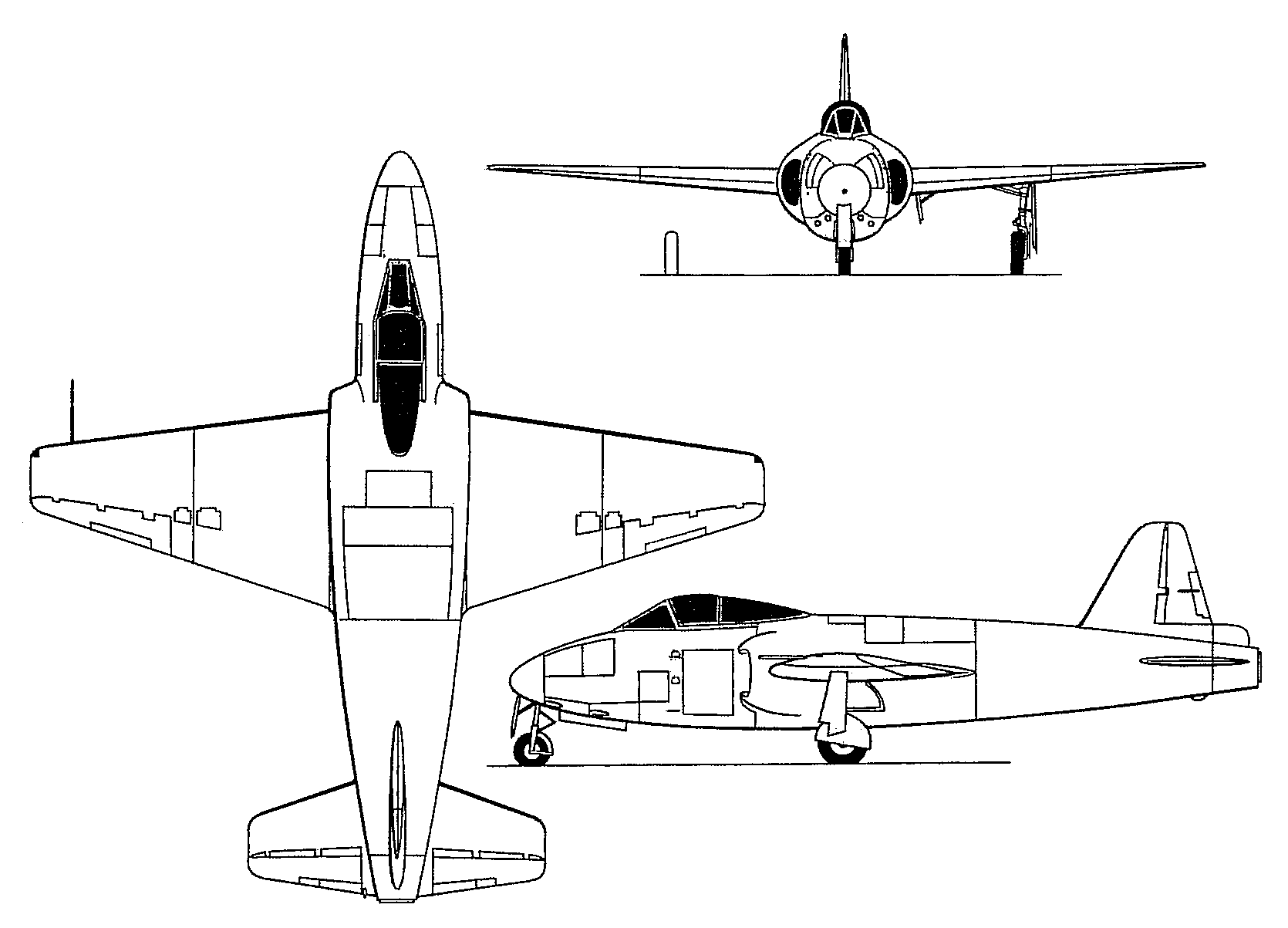

Gloster E.1/44A three-view drawing (1670 x 1203)


Specification
 WEIGHTS
    Take-off weight5203 kg11471 lb
    Empty weight3747 kg8261 lb
 DIMENSIONS
    Wingspan10.97 m36 ft 0 in
    Length11.58 m38 ft 0 in
    Height3.55 m12 ft 8 in
    Wing area23.60 m2254.03 sq ft
 PERFORMANCE
    Max. speed998 km/h620 mph

Comments
Keith, 23.07.2012

Does any one know if Bill Waterton crashlanded TX145 in a field near the RAE Farnborough (actually in Cove) in 1949 afer an engine failure

bombardier, 24.10.2011

Take this plane,fit it with swept wings and tail and you have an excellent MiGkiller.

beifan, 20.06.2011

(about the same as the world air speed record in 1946) seems very optimistic to me...

, 20.06.2011

that problems of compressibilty experienced at higher mach numbers were best answered useing swept wings, and so there was no point in proceeding with what would prove to be a dated design.

, 20.06.2011

Gloster E.1/44
1948

Bill Krouwel, 14.06.2011

Bill Waterton, who waqs responsible for testing it was deeply sarcastic about it, and thought it was good for nothing. The quoted maximum speed of 620 mph (about the same as the world air speed record in 1946) seems very optimistic to me...

Barry, 18.04.2011

This plane was known as the Ace and was one of a number of studies made by Gloster at about this time. The real reason it was not proceeded with was that in the immediate post war years it became apparent to all aircraft manufacturers that, as the Germans had already discovered, that problems of compressibilty experienced at higher mach numbers were best answered useing swept wings, and so there was no point in proceeding with what would prove to be a dated design.
