Gloster Gorcock
1925
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / United Kingdom / Gloster

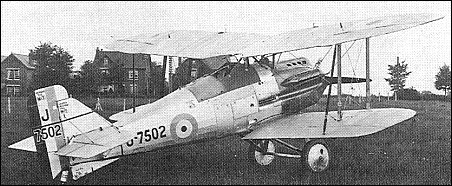

Gloster Gorcock

Gloucestershire Aircraft's first military aircraft of all-metal construction was the third prototype Gorcock single-seat fighter resulting from a May 1924 Air Ministry contract for three prototypes powered by the Napier Lion 12-cylinder water-cooled engine. The first two combined a steel fuselage with wooden wings and the third had an all-steel structure. The first mixed-construction Gorcock was powered by a 450hp geared Lion IV and was flown mid-1925, the second Gorcock having a 525hp direct-drive Lion VIII. Engine difficulties prevented their delivery until 1927, together with the all-metal third Gorcock which had a Lion IV. All three aircraft carried the standard armament of twin synchronised 7.7mm Vickers guns and were used for research and development flying, no production being ordered. Although 72kg heavier than the mixed-construction prototypes, the all-metal prototype, to which the following data refer, was 16km/h faster.


Specification
 WEIGHTS
    Take-off weight1514 kg3338 lb
    Empty weight1099 kg2423 lb
 DIMENSIONS
    Wingspan8.69 m29 ft 6 in
    Length7.94 m26 ft 1 in
    Height3.10 m10 ft 2 in
    Wing area23.22 m2249.94 sq ft
 PERFORMANCE
    Max. speed280 km/h174 mph
