Handley Page H.P.24 Hyderabad

The Hyderabad was basically a W.8 airliner built for the Air Ministry as a heavy night bomber. Powered by two 335kW Napier Lion engines, it had a maximum speed of 175km/h and carried an offensive load of 500kg. Production for the RAF amounted to just 39 aircraft, three of which were later converted into Hinaidis.

Handley Page H.P.24 Hyderabad


Specification
 CREW4
 ENGINE2 x 450hp Napier Lion II
 WEIGHTS
    Take-off weight6170 kg13603 lb
    Empty weight4045 kg8918 lb
 DIMENSIONS
    Wingspan22.86 m75 ft 0 in
    Length18.03 m59 ft 2 in
    Height5.11 m17 ft 9 in
    Wing area136.66 m21470.99 sq ft
 PERFORMANCE
    Max. speed175 km/h109 mph
    Ceiling4267 m14000 ft
    Range805 km500 miles
 ARMAMENT3 x 7.7mm machine-guns, 500kg of bombs

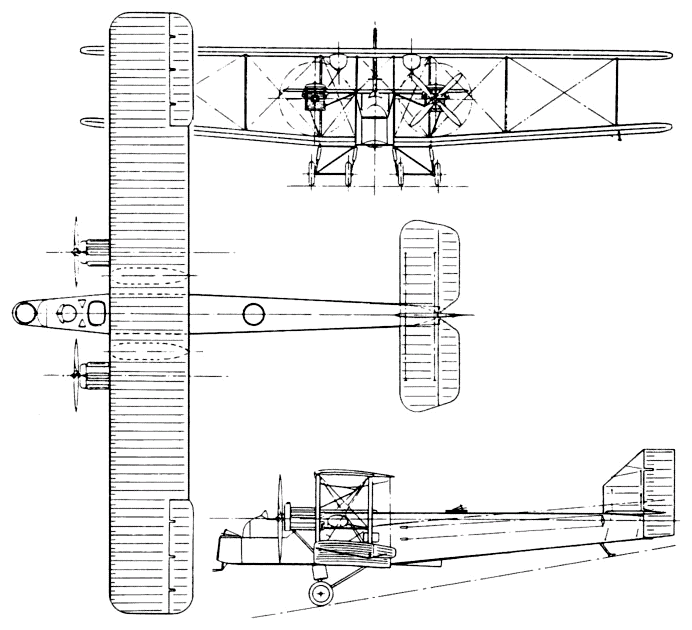

3-View
Handley Page H.P.24 HyderabadA three-view drawing (692 x 630)
