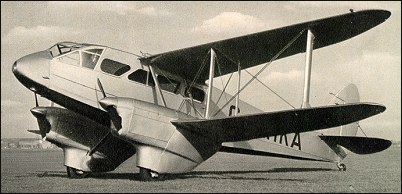

The Dragon Rapide was a direct development of the Dragon, employing the same structure but having tapered wings, 149kW Gipsy Six engines and a faired-in undercarriage. Known originally as the Dragon Six, it was first flown on 17 April 1934 and remained in production for more than ten years.
Over 700 were built for civil and military customers and served in most parts of the world - playing an important role on air routes in the UK and many parts of the British Commonwealth. The type was produced during World War II as the Dominie radio and navigation trainer. A number of Dragon Rapides were also operated on Fairchild-produced floats by Canadian airlines, produced in Canada by de Havilland's Toronto-based company.

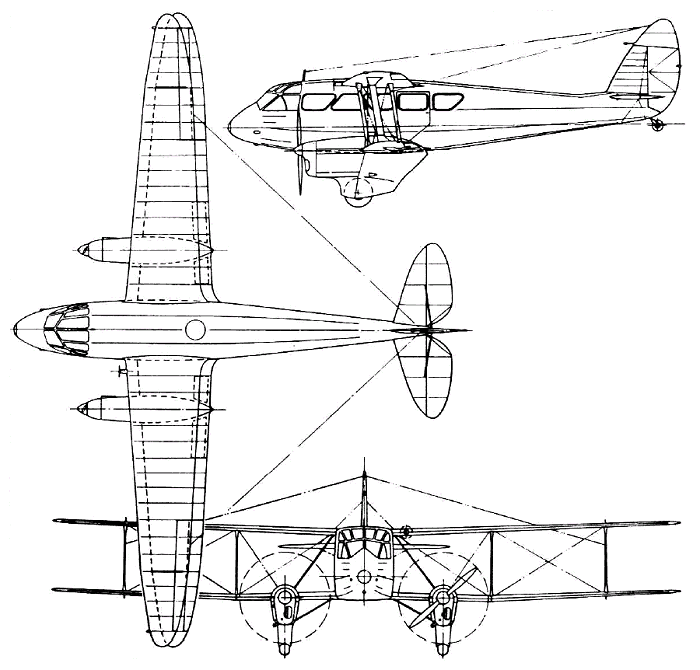

 | A three-view drawing (700 x 670) |
| MODEL | D.H.89A Mk 4 |
| ENGINE | 2 x de Havilland Gipsy Quenn 2, 149kW |
| WEIGHTS |
| Take-off weight | 2722 kg | 6001 lb |
| Empty weight | 1465 kg | 3230 lb |
| DIMENSIONS |
| Wingspan | 14.63 m | 48 ft 0 in |
| Length | 10.52 m | 35 ft 6 in |
| Height | 3.12 m | 10 ft 3 in |
| Wing area | 31.21 m2 | 335.94 sq ft |
| PERFORMANCE |
| Max. speed | 241 km/h | 150 mph |
| Cruise speed | 225 km/h | 140 mph |
| Ceiling | 4875 m | 16000 ft |
| Range | 837 km | 520 miles |
