| The Cygnet was a light aeroplane built for the 1924 Lympne trials.
| CREW | 2 |
| ENGINE | 1 x Bristol Cherab III, 25kW |
| WEIGHTS |
| Take-off weight | 431 kg | 950 lb |
| Empty weight | 169 kg | 373 lb |
| DIMENSIONS |
| Wingspan | 8.53 m | 28 ft 0 in |
| Length | 6.22 m | 20 ft 5 in |
| Height | 1.78 m | 6 ft 10 in |
| Wing area | 15.33 m2 | 165.01 sq ft |
| PERFORMANCE |
| Max. speed | 132 km/h | 82 mph |
| Ceiling | 2715 m | 8900 ft |

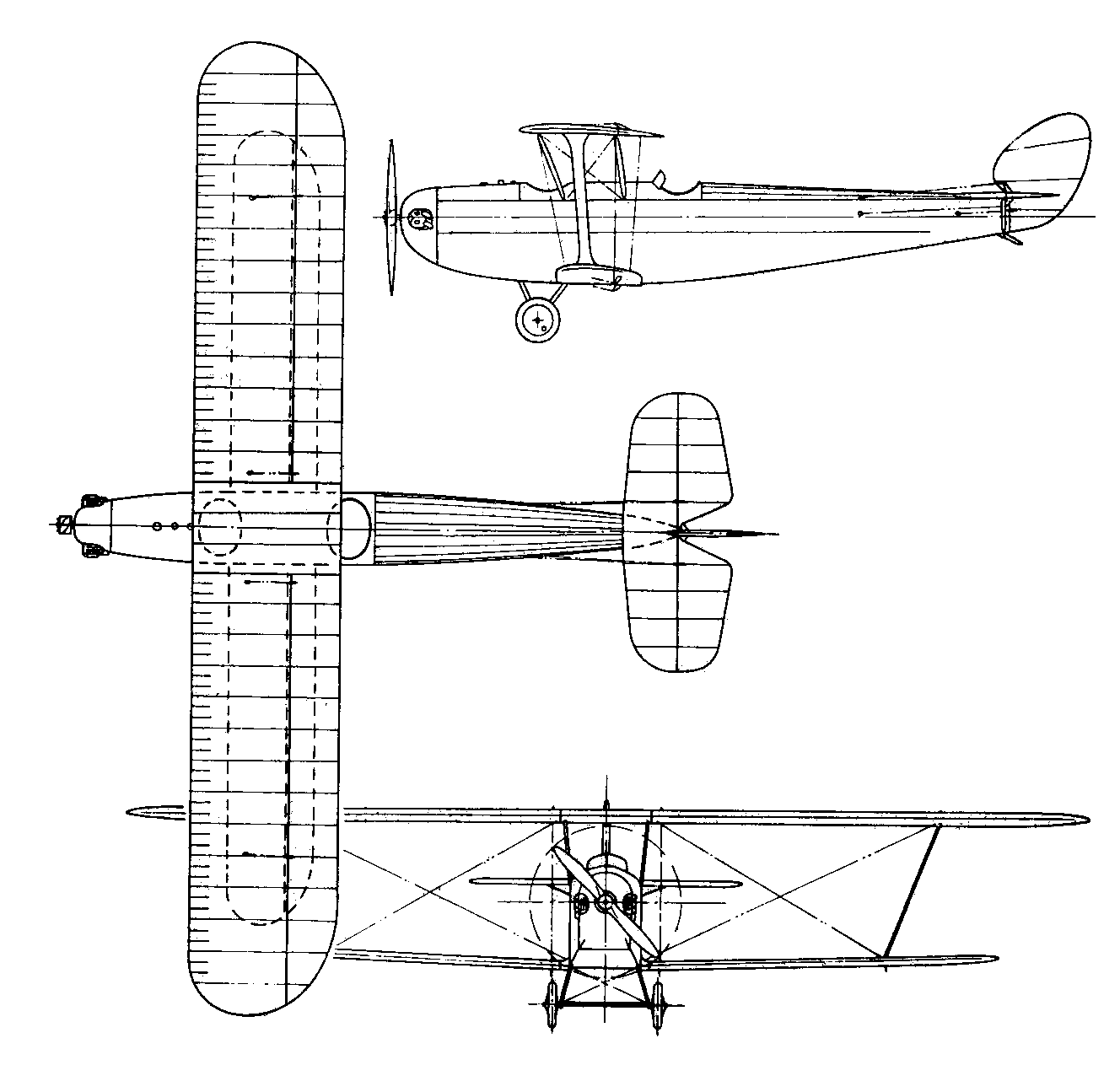

 | A three-view drawing (1328 x 1282) |
