Mann Egerton Type H
1917
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / United Kingdom / Mann Egerton

Mann Egerton Type H

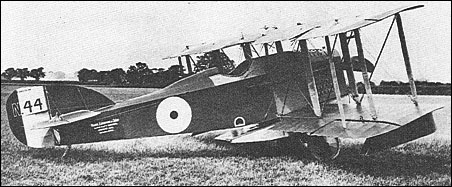

The first original design produced by Mann Egerton and Company, which had previously manufactured various aircraft types under licence, the Type H singleseat shipboard fighter was designed by J W Carr to Specification N.1a. Powered by a 200hp Hispano-Suiza 8Bd eight-cylinder water-cooled engine, the Type H was an equi-span unstaggered two-bay biplane armed with a single fixed 7.7mm Vickers gun motmted to port on the fuselage and a Lewis gun of similar calibre mounted above the wing centre section. The wings could be folded manually and the first prototype had a large, flush-fitting float attached to the underside of the fuselage. In addition, flotation chambers were included in the fuselage, and the undercarriage, which was attached to the underside of the float, could be jettisoned in the event that the aircraft was forced to alight on water. Flight testing of the first prototype commenced in the autumn of 1917, but the aircraft failed flotation testing and was therefore considered unacceptable. The second prototype differed in having inflatable flotation bags in place of the fixed float, a more conventional undercarriage and a horn-balanced rudder. This aircraft underwent official testing during December 1917, but the Type H was not accepted for service use and further development was discontinued.

3-View

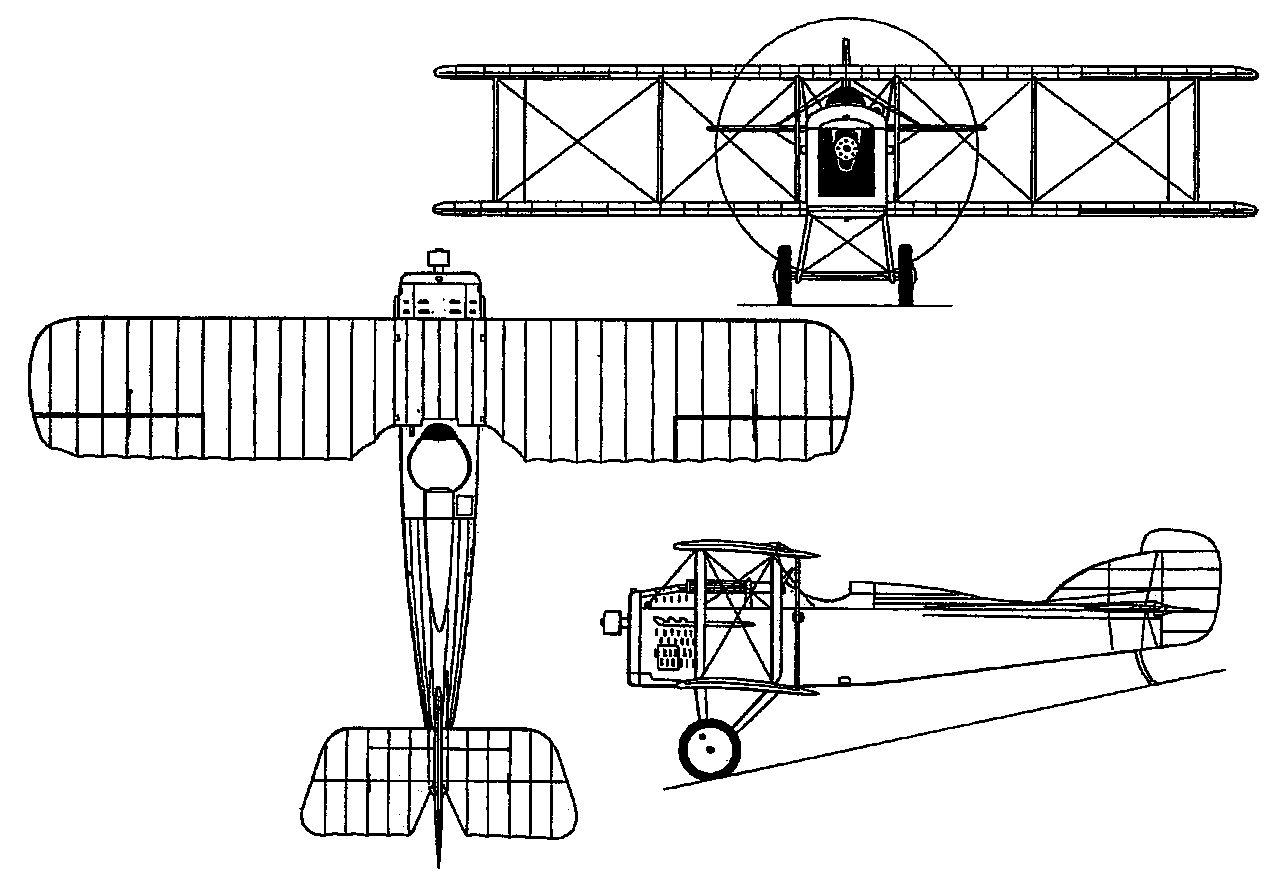

Mann Egerton Type HA three-view drawing (1278 x 884)


Specification
 MODELType H (2nd prototype)
 WEIGHTS
    Take-off weight1055 kg2326 lb
    Empty weight798 kg1759 lb
 DIMENSIONS
    Wingspan9.37 m31 ft 9 in
    Length6.68 m22 ft 11 in
    Height2.73 m9 ft 11 in
    Wing area28.80 m2310.00 sq ft
 PERFORMANCE
    Max. speed182 km/h113 mph

Mann Egerton Type H
