Miles Master
1937
Back to the Virtual Aircraft Museum
  TRAINERVirtual Aircraft Museum / United Kingdom / Miles

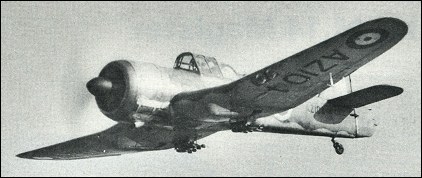

Miles Master I

In January 1939 large extensions to the Miles factory were completed and opened by the Secretary of State for Air. These were necessary to cope with a large contract for the Master I high-speed advanced training monoplane: a two-seater powered by a 536kW Rolls-Royce Kestrel 30 engine. Nine hundred were built.

Soon after the outbreak of World War II, the prototype Master II flew for the first time. It was based on the Master I but powered by a 648kW Bristol Mercury XX radial engine. Production amounted to approximately 1,800 aircraft, a number of which were sent to South Africa. Master IIs were also acquired by the air forces of Egypt, Portugal and Turkey. One Master II was used in connection with rocket experiments.

The Master III was a further development of the Master series, powered by a 615kW Pratt & Whitney R-1535-SB4G Wasp Junior radial engine. A total of 602 was built. Maximum level speed was 372km/h.

M.9A Master Mk I


Specification
 MODELM.19 Master Mk II
 ENGINE1 x Bristol Mercury XX, 649kW
 WEIGHTS
    Take-off weight2528 kg5573 lb
    Empty weight1947 kg4292 lb
 DIMENSIONS
    Wingspan11.89 m39 ft 0 in
    Length8.99 m30 ft 6 in
    Height2.82 m9 ft 3 in
    Wing area21.83 m2234.98 sq ft
 PERFORMANCE
    Max. speed389 km/h242 mph
    Ceiling7650 m25100 ft
    Range632 km393 miles

Master II

Comments
Ney Bazante, neybazante=yahoo.es, 15.09.2011

LETTER TO THE GOVERNMTMENTS AND COUNTRIES

GENTLEMENT
Members of the Government: I offer you the DESIGN OF A GREAT AIRCRAFT TYPE UFO, HELICOPTERS and more, what is projected whit a powerful motor. It was CONCEIVED FOR PASSENGERS AND ALL KIND OF CARGO, for local, national, international AND INTERPLANETARY TRANSPORT . This one will cause VERY IMPACT in the earth.

Please note that the conception of the invention is IMPOSSIBLE TO BE CONCEIVED, not now, nor will there be after dozens of years, for any engineer or engineering group of you, or any part of this planet.

THIS IDEA COMES FROM A VERY DISTANT UNIVERSE. THE FIRST FRUITS FOR YOU. I have with me , forever, the being brought. For this reason I can help you in the development of the invention process, without it costing a penny more.

The development of the invention will not have harmful consequences, nothing will explode, nothing will burn, or any other harmful consequences for. The invention is extremely simple. UFOs ARE SIMPLE TO BUILD, guide and maintain them, because thy are just about electromagnetism. THE INTELLIGENCE THAT DEVELOPED THEM IS FROM THE UNIVERSE ABOVE, ARE HIGHLY DEVELOPED and evolved. You know that there is no point of comparison with what we have on Earth. All earth aviation is obsolete.

The idea is great, the cost of processing is minimal. In a couple of years you have used successfully and securely. Your profit will be of millions of dollars. In the long term will be tenths of millions, because they cheapen everything: planes last several decades and have very low maintenance costs. FOR PASSENGERS, THE TICKETS WILL BE MUCH LOWER COST THAN TODAY. For all this, you will establish a huge monopoly for decades. I hope that you will know that this is something extraordinary, buy it now.

Ney Bazante, Guayaquil, Ecuador, Tel. 593-4-223-3946 / 593-08-607-1735. neybazante@yahoo.es

Lee Ward, leeward22=sky.com, 26.08.2011

I also did my OTU training on Master I and Swordfish at Castle Coombe satellite to RAF Hullavington in early 1942. I was airborne during one of the raids on Bath when we got mixed up among some JU88s. My instructor made a rapid dive for the airfield where we arrived just as the last gooseneck flare was extinguished. The next evening we walked into Bath to view the damage and promptly got caught in another air raid on the city. We were back on the road to Castle Coombe in double quick time.

Lee Ward, leeward22=sky.com, 26.08.2011

I did my intermediate and advanced training on Master IIIs at RAF Netheravon in 1941 which was a flying training school for the Fleet Air Arm. My recollection is that the one forward gun was in the port wing.

Justin Sheedy, justinsheedy=hotmail.com, 28.03.2011

Hi, I'm writing a book (historical fiction) featuring the Miles Master briefly: My question: Where precisely on the Master was its single forward-firing machine gun located? I've read online both that it was fitted to the wing, and also in the forward fuselage. Which was true?

mhowdle, mhowdle=hotmail.co.uk, 13.06.2010

Hi particuarlly to john eastmond, my father also flew masters from ternhill, I think he was a flt lieutenant by then, best wishes mike howdle

John Billingham, billingham.bilge=virgin.net, 04.04.2010

Am researching this aircraft as one was known to have crashed on my families farm, in Herefordshire, UK. sometime during 1944.

John Eastmond, johneastmond=btinternet.com, 15.09.2009

My father flew the Miles Master I and III at RAF Tern Hill and Findo Gask (I think). Later he flew Harvards in Scotland. He was a QFI trained in Pensicola, USA on Stearmans.

Regards

John Eastmond

penni aron, penni=11hr.cc, 19.06.2009

are there any milesmaster planes in museums in the u.k?

R.E. Mauger, pacrat707=aol.com, 24.07.2008

Saw picture and 3 view drawing in 1973 Ian Allen Aircraft Illustrated Magazine .... Yes that old! Plan on building a semi-scale aerobatic, gas powered model. Great aircraft with a great history, plus a bit unusual among the model builders comunity. This makes it a perfect subject. Hate the RTF Models.

daz, ptdaz03=yahoo.co.uk, 12.02.2008

Hi, ive recently came across some old photos and postcards one of which is a miles "master"advance trainer.There is some writing on the front of the postcard which reads :"DO YOU RECOGNISE ME IN THE KAPLI? THE AREOPLANE MAGAZINE PEOPLE CAUGHT ME UNAWARES"!!AND ITS SIGNED JOE REANEY OR REAMEY.THE NUMBER ON THE PLANE IS N7547 I WAS WONDERING IF YOU COULD SHED ANY LIGHT ON THIS......MANY THANX DAZ.....
