Port Victoria P.V.7 Grain Kitten
1917
Back to the Virtual Aircraft Museum
  AIRSHIP INTERCEPTORVirtual Aircraft Museum / United Kingdom / Port Victoria

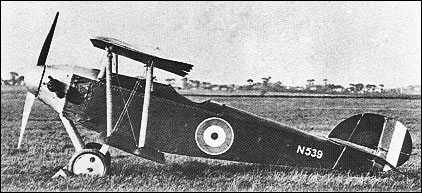

Port Victoria P.V.7 Grain Kitten

To meet a requirement for a diminutive lightweight single-seat airship interceptor suitable for operation from platforms on relatively small seagoing vessels, the Depot produced the P.V.7 to the designs of W H Sayers. To become known as the Grain Kitten to distinguish it from a competitive design created by the RNAS Experimental Flight at Eastchurch (which accordingly became known as the Eastchurch Kitten), the P.V.7 was an extremely small sesquiplane intended to be powered by a 45hp geared ABC Gnat two-cylinder air-cooled engine. Armament consisted of a single 7.7mm machine gun mounted above the wing centre section. Unavailability of the geared Gnat engine led to installation of a 35hp direct-drive Gnat with which the P.V.7 was completed in the summer of 1917. Difficulties were experienced with the engine from the start of flight testing in June, the aircraft being tail-heavy and performance disappointing. A series of modifications was introduced, but the P.V.7 was not flown subsequently.

3-View
Port Victoria P.V.7 Grain KittenA three-view drawing (1663 x 1200)


Specification
 WEIGHTS
    Take-off weight223 kg492 lb
    Empty weight123 kg271 lb
 DIMENSIONS
    Wingspan5.49 m18 ft 0 in
    Length4.55 m15 ft 11 in
    Height1.60 m5 ft 3 in
    Wing area7.90 m285.03 sq ft
 PERFORMANCE
    Max. speed143 km/h89 mph
