Saunders-Roe A.19 Cloud
1930
Back to the Virtual Aircraft Museum
  FLYING BOATVirtual Aircraft Museum / United Kingdom / Saunders-Roe

Saunders-Roe A.19 Cloud

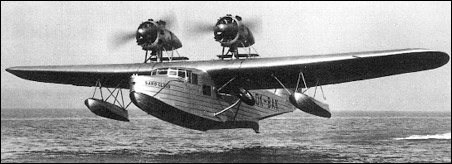

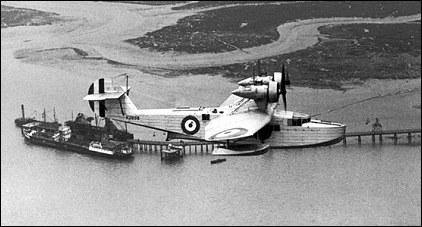

The Cloud amphibious flying-boat was produced in two forms: as a civil eight-seater and as a military trainer. In the latter role the RAF received 16 from 1933. The large cabin provided accommodation for eight pupils; six pupils and wireless and electrical equipment, navigation instruments and signalling apparatus; or four.pupils and the above equipment for navigational training. Alternatively, the Cloud could be used for flying training, to simulate the conditions to be met with a larger service type of flying-boat. Power was provided by two 253kW Armstrong Siddeley Double Mongoose engines.

Saunders-Roe A.19 Cloud


Specification
 MODELA.19
 ENGINE2 x Armstrong-Siddeley Serval V, 254kW
 WEIGHTS
    Take-off weight4309 kg9500 lb
    Empty weight3084 kg6799 lb
 DIMENSIONS
    Wingspan19.51 m64 ft 0 in
    Length15.28 m50 ft 2 in
    Height5 m16 ft 5 in
    Wing area60.39 m2650.03 sq ft
 PERFORMANCE
    Max. speed190 km/h118 mph
    Ceiling4265 m14000 ft
    Range612 km380 miles
