Seddon Mayfly

In 1908 Lieutenant John W. Seddon of the Royal Navy was inspired by a flying paper model to design a giant tandem biplane, with which he hoped to win a GBP10,000 prize for the first Manchester to London flight. Convinced that hoops of high-tensile steel tube were much more efficient than conventional wood and wire bracing, he persuaded the Navy to give him leave to work on his project and his mother largely to pay for it. The aircraft, named optimistically (and prophetically) the 'Mayfly', was built in a bicycle factory and used up 610m of steel tubing. On its only high-speed run, a wheel collapsed and the aircraft was damaged. Repairs and modifications were hampered by Seddon's return to duty and the Mayfly never did fly, eventually being dismantled by souvenir hunters.

Seddon Mayfly


Specification
 CREW1
 PASSENGERS5
 ENGINE2 x 65hp NEC six-cylinder water-cooled piston engines
 WEIGHTS
    Take-off weight1180 kg2601 lb
 DIMENSIONS
    Wingspan15.20 m50 ft 10 in
    Length15.20 m50 ft 10 in

Comments
Terrence I. Murphy, 11.02.2012

I can't tell from the wild mass of steel tubes. Was this pusher engine aircraft?

, 12.06.2011

Seddon Mayfly 1910,In 1908 Lieutenant John W. Seddon of the Royal Navy

Do you have any comments about this aircraft ?

Name    E-mail

FACTS AND FIGURES

The Mayfly was said to be intended to carry five passengers, but it is not clear where they were supposed to be accommodated.

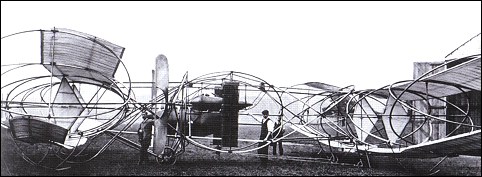

Two piston engines in the same nacelle were connected by chains to two-bladed Beedle aluminium propellers, which look horribly inefficient, although Seddon wrote glowing letters in praise of their 'more than satisfactory pull' to the maker.

Control surfaces were a biplane elevator mounted forward and four small rudders. The outer wings pivoted forward and aft for lateral control, although their effectiveness seems unlikely.
