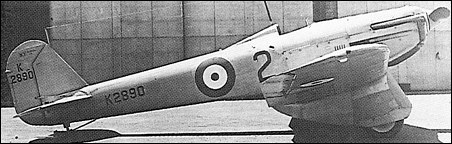

Supermarine 224 (F.7/30)

Issue of Specification F.7/30 in 1930 for a single-seat fighter led Supermarine to build its first aircraft intended for this role. Designed under the direction of Reginald J Mitchell as Type (or Drawing) 224, Supermarine's proposal was one of three to gain Air Ministry backing for prototype construction (along with Westland and Blackburn), an order for one aircraft being placed in 1932. Based on experience gained with the Supermarine float seaplanes designed for participation in the Schneider Trophy contests, the Type 224 was of all-metal construction with fabric covering of the wing aft of the mainspar and of the tail surfaces. Its 600hp Rolls-Royce Goshawk II engine had an evaporative cooling system, which was to prove to be a major reason for the eventual failure of the Type 224 to gain acceptance. Armament comprised two 7.7mm guns in the fuselage and one in each mainwheel fairing. First flown on 19 February 1934, the Type 224 failed to achieve its performance estimates, and, after a prolonged sojourn at the RAE Farnborough, went to the A&AEE and eventually ended its days as a gunnery target.

3-View

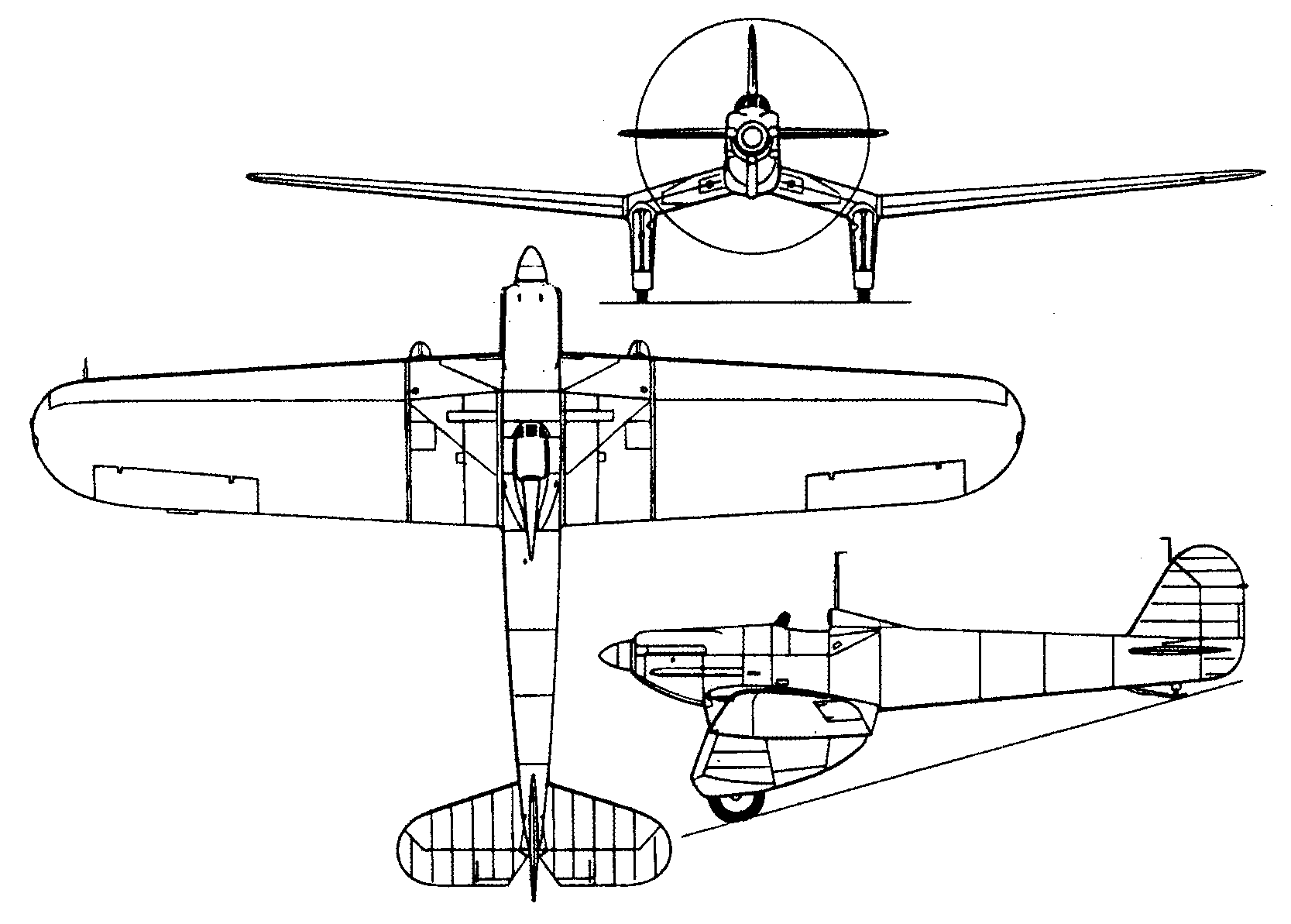

Supermarine 224 (F.7/30)A three-view drawing (1667 x 1193)


Specification
 WEIGHTS
    Take-off weight2151 kg4742 lb
    Empty weight1552 kg3422 lb
 DIMENSIONS
    Wingspan13.97 m46 ft 10 in
    Length8.97 m29 ft 5 in
    Height3.63 m12 ft 11 in
    Wing area27.40 m2294.93 sq ft
 PERFORMANCE
    Max. speed367 km/h228 mph
    Ceiling11825 m38800 ft

Comments
James Clark, madharry45=yahoo.com, 13.04.2013

The prototype spitfire K5054 did not use the Goshawk engine.

big h, hsharland46=gmail.com, 25.05.2011

Acording to Mr Joseph Smith, CBE, FRAeS, AIAE chief designer at Super marine who delivered a lecture to The Royal Areonautical Society onDecember 19th. 1946 the Goshawk engine was steam cooled which was retained in the prototype spitfire

ayantre, kingtrl22=YAHOO.COM, 06.10.2010

I LIKE THIS

Dr James R Bell, troikacarleton=btinternet.com, 04.09.2010

It actually had two close-in wing mounted firing through the propellor and two wheel spat mounted browning 0.303" firing outside the propellor.
Its innovative evaporative cooling system was a failure and it could only reach 228 mph so the Ministry awarded the ighter contract to Gloster for its Gladiator biplane. Mitchell used the experience eventually to develop the type 300

spitfire, 30.06.2009

it had 4 machine guns firing through the prop(propeller)
