Vickers G.4/31
1934
Back to the Virtual Aircraft Museum
  GENERAL PURPOSEVirtual Aircraft Museum / United Kingdom / Vickers

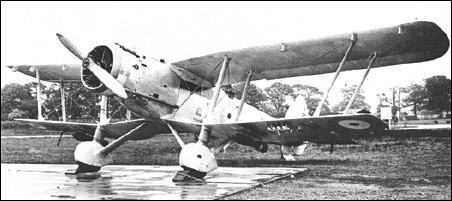

Vickers G.4/31

One prototype, first flown on 6 August 1934. No production.

3-View

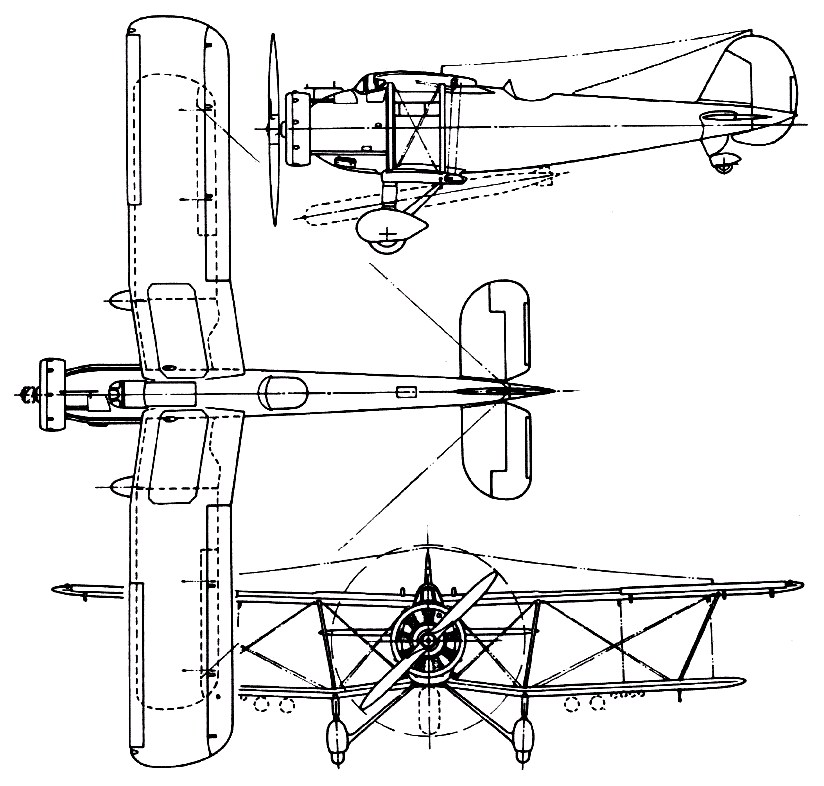

Vickers G.4/31A three-view drawing (824 x 786)


Specification
 CREW2
 ENGINE1 x 635hp Bristol Pegasus IIM.3
 WEIGHTS
    Take-off weight3791 kg8358 lb
    Empty weight1982 kg4370 lb
 DIMENSIONS
    Wingspan16.03 m53 ft 7 in
    Length11.28 m37 ft 0 in
    Height3.81 m13 ft 6 in
    Wing area53.79 m2578.99 sq ft
 PERFORMANCE
    Max. speed259 km/h161 mph
    Ceiling6614 m21700 ft

Comments
Barry, 01.11.2016

This plane, the Vickers 253, won the competition for selection against similar types from both Fairey and Parnall (the last military type produced by that company). However the Vickers model did not go into production as the Air Ministry selected a monoplane in it's place namely the Vickers Wellesley (q.v.).

Boogey, 31.01.2009

There are many informations in internet about this aircraft
and most important is that it had Vickers type number 253.
