The Valentia was a development of the earlier Victoria troop-carrier, differing by having two 484kW Bristol Pegasus II.L3 or II.M3 engines (the latter for use in India) and an improved landing gear. Accommodation was for a crew of two and 22 troops; lockers were used for equipment and rifle-racks and stretcher supports were provided. Bomb racks could also be fitted if required. Twenty-eight were built as new and 54 Victorias were brought up to this standard.

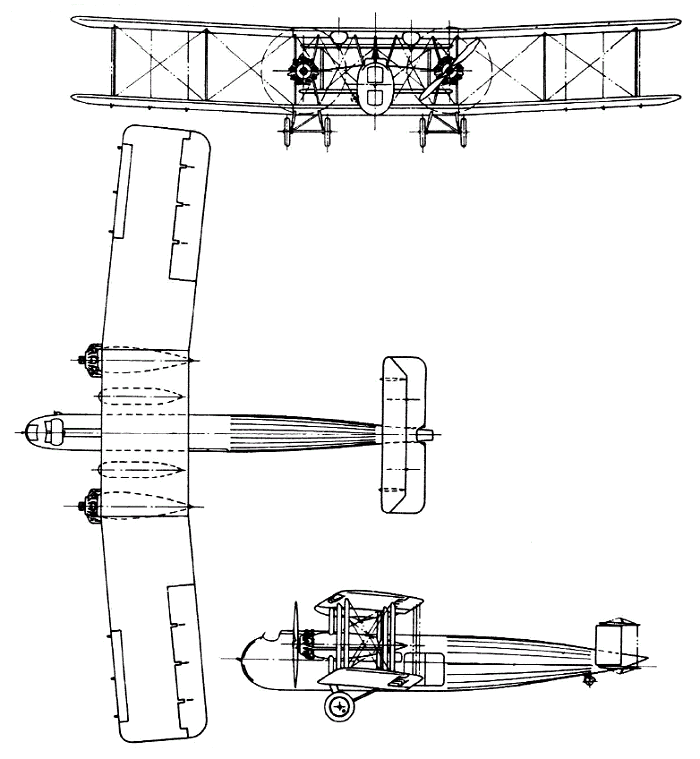

 | A three-view drawing (700 x 759) |
| ENGINE | 2 x 464kW Bristol Pegasus radials, |
| WEIGHTS |
| Take-off weight | 8845 kg | 19500 lb |
| Empty weight | 4964 kg | 10944 lb |
| DIMENSIONS |
| Wingspan | 26.62 m | 87 ft 4 in |
| Length | 18.14 m | 59 ft 6 in |
| Height | 5.41 m | 17 ft 9 in |
| PERFORMANCE |
| Max. speed | 193 km/h | 120 mph |
| Ceiling | 4955 m | 16250 ft |
| Range | 1287 km | 800 miles |
| ARMAMENT | 1000kg of bombs |
|
