ANF-Mureaux 170

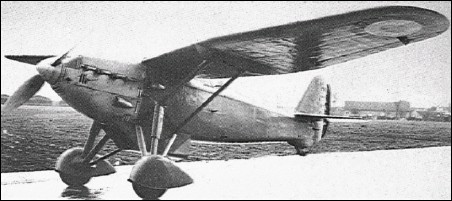

Designed to meet the requirements of the 1930 single-seat fighter programme which specified the use of a supercharged engine and a maximum speed of at least 350km/h, the Mureaux 170 was powered by a 690hp Hispano-Suiza 12 Xbrs 12-cylinder liquid-cooled engine and carried an armament of two 7.7mm MAC (Vickers) machine guns in the wings. Of all-metal construction, the Mureaux 170 was first flown in November 1932, a second prototype, built as a private venture, flying in March 1934. Several changes were made to the size and positioning of the radiator bath, and the fighter was rejected primarily because of the poor visibility from the cockpit for landing.

3-View

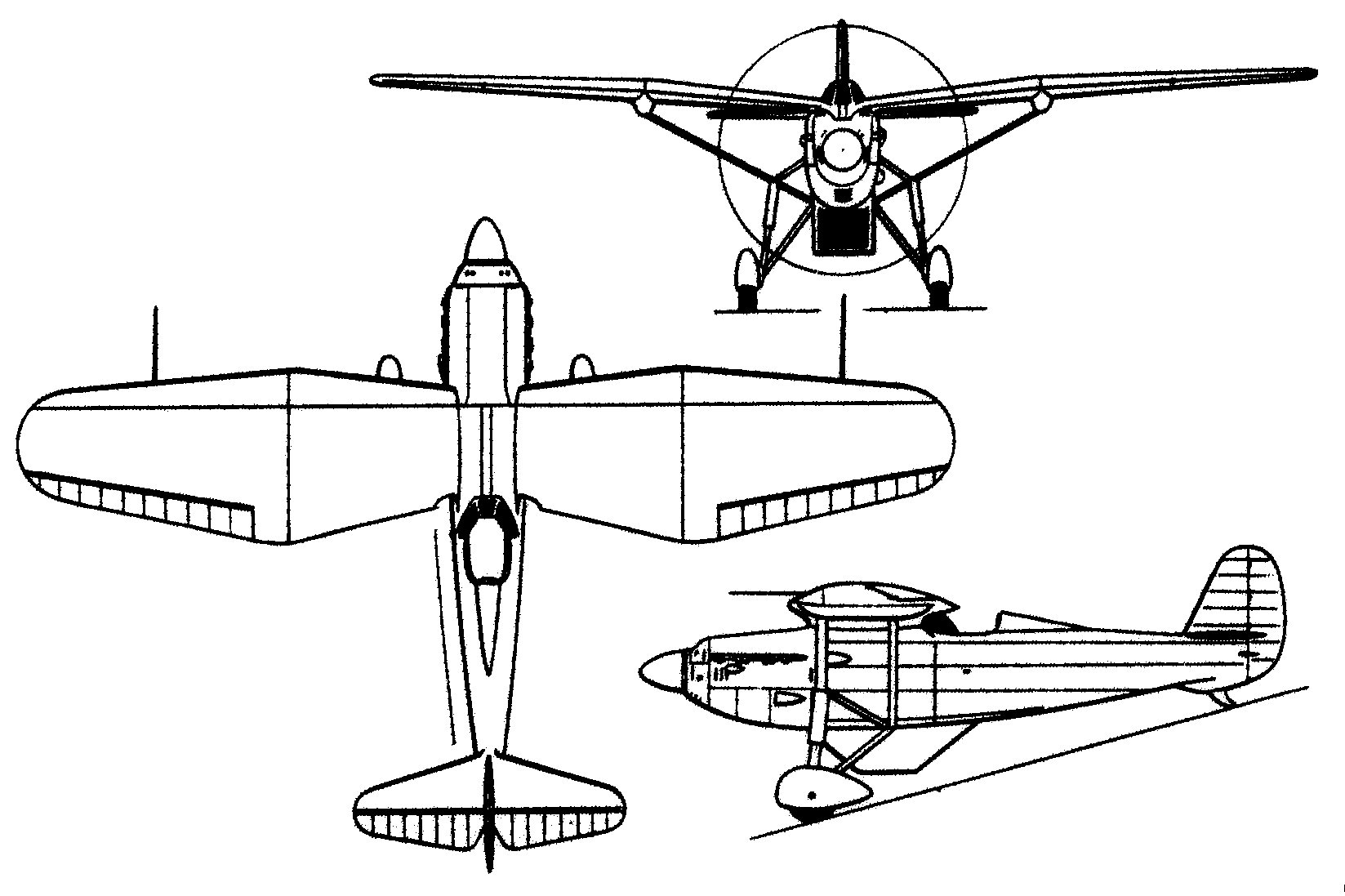

ANF-Mureaux 170A three-view drawing (1647 x 1097)


Specification
 MODELANF Mureaux 170
 CREW1
 ENGINE1 x 690hp Hispano-Suiza 12Xbrs
 WEIGHTS
    Take-off weight1670 kg3682 lb
    Empty weight1199 kg2643 lb
 DIMENSIONS
    Wingspan11.38 m37 ft 4 in
    Length7.90 m26 ft 11 in
    Height3.00 m10 ft 10 in
    Wing area19.56 m2210.54 sq ft
 PERFORMANCE
    Max. speed372 km/h231 mph
    Cruise speed328 km/h204 mph
    Ceiling8500 m27900 ft
    Range685 km426 miles
