Bernard 190
1928
Back to the Virtual Aircraft Museum
  TRANSPORTVirtual Aircraft Museum / France / Bernard

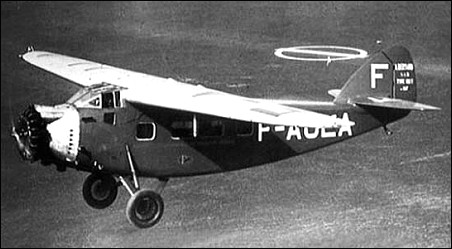

Bernard 190

There is no text information for this aircraft at the moment.


Specification
 MODELBernard 190T
 CREW2
 PASSENGERS8
 ENGINE1 x 480hp Gnome & Rhone 9Ady Jupiter
 WEIGHTS
    Take-off weight3400 kg7496 lb
    Empty weight1956 kg4312 lb
 DIMENSIONS
    Wingspan17.30 m57 ft 9 in
    Length12.58 m41 ft 3 in
    Height3.59 m12 ft 9 in
    Wing area42.90 m2461.77 sq ft
 PERFORMANCE
    Max. speed216 km/h134 mph
    Cruise speed200 km/h124 mph
    Ceiling3700 m12150 ft
    Range1000 km621 miles

Comments
Barry, 21.04.2016

Based round the earlier Bernard 18 the 190 was developed not only as an airliner, but as a record breaking plane. The French were desperate to fly the Northern Atlantic and whilst the first attempt by Louis Corduret was unsuccessful when the plane refused to leave the runway in Paris, the second attempt in the bright yellow "Oiseau Canari" (Canary Bird) from Old Orchard Beech Maine was a success. The crew of three plus one stowaway took off on 13th June 1929 and landed in Comillas Cantabria Spain 29 hours 52 minutes later. The "Oiseau Canari" can be found in the Musee de l'Air et de l'Espace. About 15 Bernard 190's were built.
