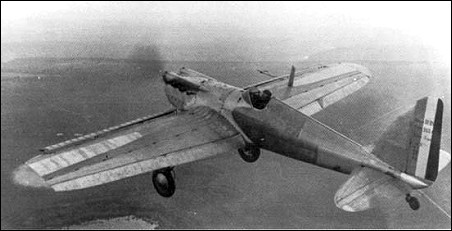

Bernard 260
1932
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / France / Bernard

Bernard 260

There is no text information for this aircraft at the moment.

3-View
Bernard 260A three-view drawing (1660 x 1283)


Specification
 MODELBernard 260
 CREW1
 ENGINE1 x 690hp Hispano-Suiza 12Xbrs
 WEIGHTS
    Take-off weight1800 kg3968 lb
    Empty weight1357 kg2992 lb
 DIMENSIONS
    Wingspan11.30 m37 ft 1 in
    Length7.80 m26 ft 7 in
    Wing area18.20 m2195.90 sq ft
 PERFORMANCE
    Max. speed376 km/h234 mph
    Cruise speed335 km/h208 mph
    Ceiling10200 m33450 ft
 ARMAMENT2 x 7.5mm

Comments
Barry, 09.05.2016

Entered into competition with the Dewoitine 500, there was very little to differentiate the two aircraft, in that in some parameters one was better than the other and vica verca. The Avaition Militaire decided against Bernard because of the time delay in using the slots i.e. it was 10% slower at reaching 3,000 meters (9,800 ft) and they were concerned at the "chaotic nature" of Bernard's management structure. The improved Bernard 261 with a more powerful Hispano-Suiza 12 Ybrs and retractable undercarriage was started but never flown.
