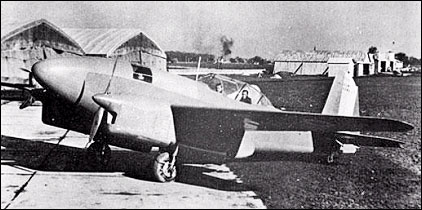

Caudron C.670

A prototype twin-engined high-speed bomber based on C.640 mail-carrier, flown in March 1937; it accommodated a crew of three comprising a bomb-aimer in the nose and the pilot and gunner under a raised glazed canopy; intended armament was two 20mm cannon, one 7.5mm machine-gun and two bombs of either 100kg or 250kg depending on target distance; performance similar to C.640, dimensions and weights slightly increased; bore the provisional service serial FW-006, but soon abandoned.

 ENGINE2 x 220hp Renault 454
    Take-off weight3704 kg8166 lb
    Empty weight2127 kg4689 lb
    Wingspan14.80 m49 ft 7 in
    Length11.60 m38 ft 1 in
    Height3.00 m10 ft 10 in
    Wing area28 m2301.39 sq ft
    Max. speed405 km/h252 mph
    Ceiling7000 m22950 ft
    Range2640 km1640 miles
