Caudron G.3

1913

Back to the Virtual Aircraft Museum
  SPOTTERVirtual Aircraft Museum / France / Caudron

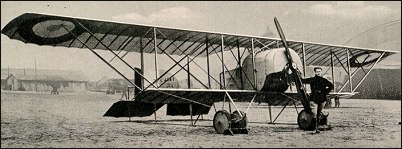

Caudron G.3

Developed from the G.II of 1913, the G.III was a two-seat sesquiplane powered by a 59.6kW Le Rhone, Gnome or Anzani engine mounted in the nose of the short crew nacelle. Originally operated by French squadrons as reconnaissance aircraft over the Western Front and then in less dangerous theatres of war, the G.III subsequently became a trainer, serving also with the British, Belgian, Italian and American forces.

Caudron G.3

Specification
 CREW2
 ENGINE1 x Le Rhone, 59kW
 WEIGHTS
  Take-off weight734 kg1618 lb
  Empty weight445 kg981 lb
 DIMENSIONS
  Wingspan13.4 m44 ft 12 in
  Length6.4 m21 ft 0 in
  Height2.6 m9 ft 6 in
  Wing area27.0 m2290.63 sq ft
 PERFORMANCE
  Max. speed106 km/h66 mph
  Ceiling3000 m9850 ft
  Range w/max.fuel300 km186 miles

Caudron G.3

Comments
Ricardo Weisz, e-mail, 12.08.2020 18:00

Me gustaria conseguir losnplanos del caudron G3 para hacer una maqueta en 1 /72 conmemorando al piloto Alberto Selvetti. Del que tengo una foto autografiada posando junto a este avion en 1921..
Agradeceré la informacion

reply

Enrique Pallarés Camas, e-mail, 04.01.2015 13:25

att. Enrique de Barcelona contacta con enricpallares@yahoo.com fono 615269696
grs coop

reply

Enrique Pallarés Camas, e-mail, 18.12.2014 17:42

Soy otro Enrique, un aficionado del Prat de Llobregat donde estamos organizando un museo de aviación. Y atenemos 7 aparatos. Necesitamos planos del Caudron fabricado en Barcelona por Talleres Hereter. Seria una nueva pieza estática. Grs. Coop.

reply

Klaatu83, e-mail, 23.07.2014 04:51

Sometimes looks can be deceiving. It's hard to believe from it's appearance, but this was actually a very good airplane: sturdy, stable, easy to fly and efficient. However like most pre-WW-I designs, it suffered from a lack of speed, maneuverability and poor crew placement (the pilot was seated behind the observer, who had a limited view and field of fire). Nevertheless, it was a successful reconnaissance plane early in WW-I, as well as a good training airplane throughout the war.

reply

DAVID, e-mail, 30.03.2012 01:35

CONSTRUYO ACTUALMENTE UN CAUDRON G3 ESTATICO ME GUSTARIA QUE ALGUIEN ME PUDIERA COLABORAR CON LOS PLANOS EN ESCALA 1.1

reply

DAVID, e-mail, 30.03.2012 01:33

CONSTRUYO ACTUALMENTE UN CAUDRON ESTATICO ME GUSTARIA QUE ALGUIEN ME PUDIERA COLABORAR CON LOS PLANOS EN ESCALA 1.1

reply

Federico, e-mail, 28.04.2011 18:15

Jose Velasco Adame, tenga usted un buen día.

reply

Hamish Cameron, e-mail, 23.05.2010 00:58

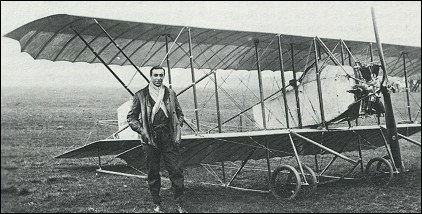

I like the lower picture of the 60 hp G 2 here. However what I would really like is a set of detailed plans and drawings of the aircraft as we (South Canterbury Aviation Heritage Centre, a voluntary New Zealand group) would like very much to build a museum replica of the machine. Can you help or give us any leads please?

reply

JOSE VELASCO ADAME, e-mail, 30.09.2007 00:53

LISTO CUENTEN CON MIGO TENGO PLANOS,HERRAMIENTAS,FOTOS, TIEMPO LIBRE,EXPERIENCIA DE CONSTRUCCION DE DOS AVIONES CAUDRON G 3 PARA LA FUERZA AEREA COLOMBIANA, EN LA CUAL TRABAJE MAS DE 20 AÑOS.

reply
