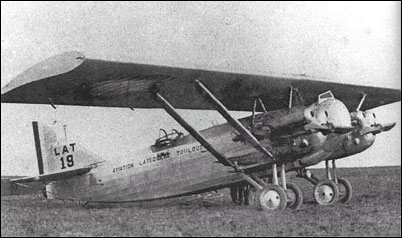

The initial success of the Late 15 was shortlived as the aircraft was soon found to be underpowered. From the basic design was developed the Late 19 twin-engined two-seat night-bomber, which dispensed with the lower stub wings and had open defensive machine-gun positions situated in the nose and amidships. Two were built in 1926 for the Armee de I'Air, as was the sole Late 20, an ambulance variant.
| ENGINE | 2 x 270hp Lorraine 8Ād |
| WEIGHTS |
| Take-off weight | 3960 kg | 8730 lb |
| Empty weight | 2000 kg | 4409 lb |
| DIMENSIONS |
| Wingspan | 18.00 m | 59 ft 1 in |
| Length | 11.85 m | 38 ft 11 in |
| Height | 3.76 m | 12 ft 4 in |
| Wing area | 54.00 m2 | 581.25 sq ft |
| PERFORMANCE |
| Max. speed | 178 km/h | 111 mph |
| Cruise speed | 149 km/h | 93 mph |
| Ceiling | 4300 m | 14100 ft |
| Range | 560 km | 348 miles |
| ARMAMENT | 4machine-guns, 600kg of bombs |
|
