Loire 210
1935
Back to the Virtual Aircraft Museum
  FLOAT-EQUIPPED FIGHTERVirtual Aircraft Museum / France / Loire

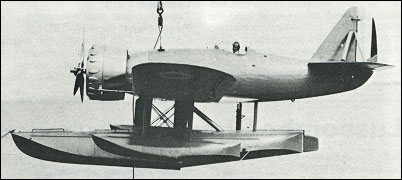

Loire 210

In 1933, the Marine Nationale formulated and issued a requirement for a modern float-equipped fighter that could be launched from the rotatable catapults of such cruisers as the Foch and the Richelieu. Contenders were built by Loire, Bernard (H.52), Potez (452) and Romano (R-90). The Loire 210, first flown on 21 March 1935, was of all-metal construction with metal skinning apart from the outboard sections of the wings which were fabric covered. It employed a fuselage essentially similar to that of the Loire 46. Powered by a 720hp Hispano- Suiza 9Vbs nine-cylinder radial, the Loire 210 began official trials in June 1936. A production order, which called for 20 aircraft, was not placed until 19 March 1937, the first series aircraft flying on 18 November 1938. The production model carried an armament of four wing-mounted 7.5mm Darne machine guns, two escadrilles forming with this fighter in August 1939. However, after several accidents resulting from wing structural failures, the remaining aircraft were withdrawn from service and their units disbanded.

3-View

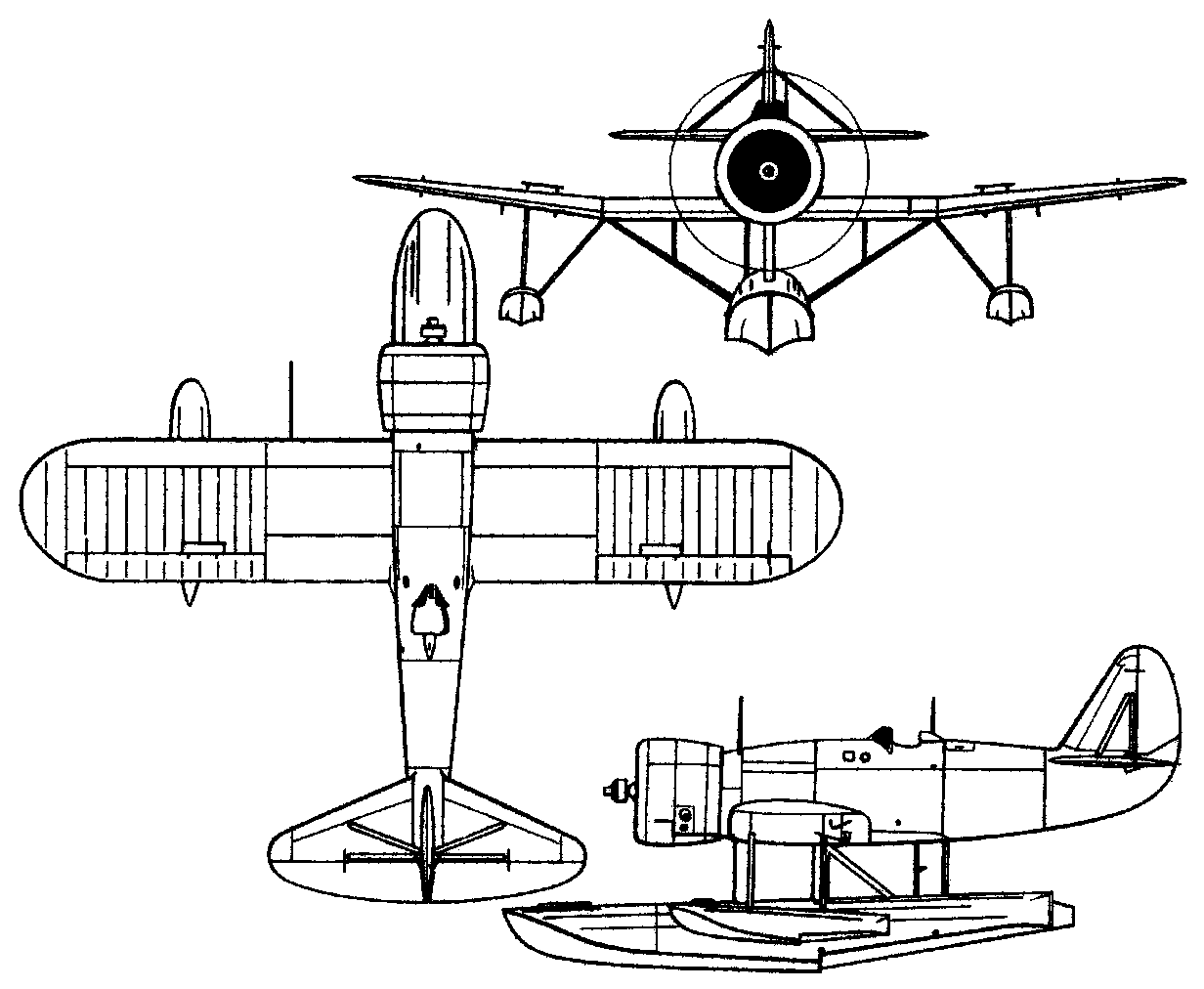

Loire 210A three-view drawing (1232 x 1012)


Specification
 WEIGHTS
    Take-off weight2180 kg4806 lb
    Empty weight1440 kg3175 lb
 DIMENSIONS
    Wingspan11.79 m39 ft 8 in
    Length9.51 m31 ft 2 in
    Height3.80 m12 ft 6 in
    Wing area20.30 m2218.51 sq ft
 PERFORMANCE
    Max. speed299 km/h186 mph
    Range750 km466 miles

Comments
leo rudnicki, 30.04.2009

If you refer to the Blackburn B-20, it was just to keep the props out of the water and was far from successful.

Aero-Fox, 27.03.2008

I always wondered: why not make a floatplane fighter with floats that retracted into the fuselage? It was done succesfully with an experimental British bomber aircraft...why not with a fighter?
Would've cut down on drag immensly...

Timo Ruoko, 28.01.2007

Ceiling was 8000 m
