Morane-Saulnier Type N
1916
Back to the Virtual Aircraft Museum
  FIGHTERVirtual Aircraft Museum / France / Morane-Saulnier

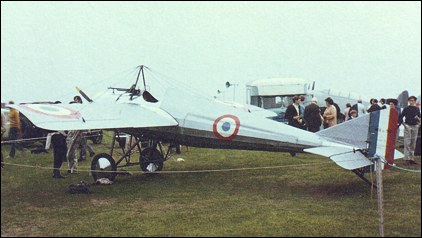

Morane-Saulnier Type N

The Morane-Saulnier Type N was followed into service by two larger, more powerful and better-armed variants, the Type LA and Type P. The latter was the more widely used of the two, being adopted by both the French and British. The Type N was by no means as successful. Of advanced design, with very clean lines, its high landing speed and extremely sensitive controls made it unpopular with all but the most experienced pilots, and only 49 were built. Designated MS.5C.1 in French service, the type was also used by the RFC, in which it was known as the 'Bullet'.


Specification
 ENGINE1 x 110hp Le Rhone 9J rotary engine
 WEIGHTS
    Take-off weight510 kg1124 lb
 DIMENSIONS
    Wingspan8.30 m27 ft 3 in
    Length6.70 m22 ft 0 in
    Height2.50 m8 ft 2 in
 PERFORMANCE
    Max. speed165 km/h103 mph
    Ceiling4000 m13100 ft
 ARMAMENT1 x 7.7mm machine-gun
