Potez 26

Essentially a single-seat fighter version of the Potez 25 two-seat army co-operation aircraft, the Potez 26 was, in fact, the first to fly, commencing its test programme in August 1924. A single-bay, staggered sesquiplane with a narrow-chord lower wing and inclined N-type interplane struts, the Potez 26 was of wooden construction with fabric covering, and was designed to accept either Lorraine-Dietrich or Hispano-Suiza engines. The sole prototype was powered by a 450hp Hispano-Suiza 12Ha water-cooled 12-cylinder engine and its armament consisted of two synchronised 7.7mm machine guns. No series production was undertaken.

3-View

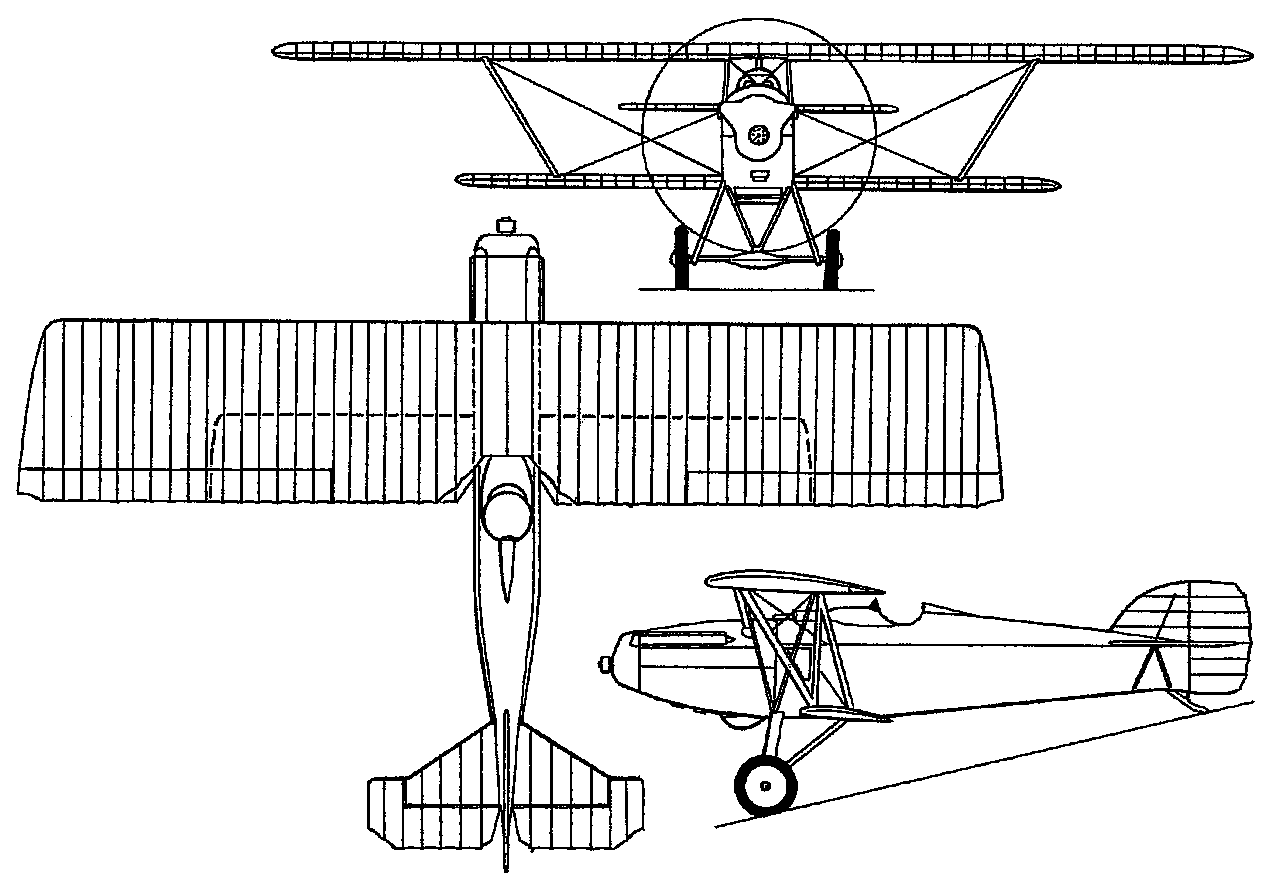

Potez 26A three-view drawing (1280 x 890)


Specification
 WEIGHTS
    Take-off weight1550 kg3417 lb
    Empty weight1100 kg2425 lb
 DIMENSIONS
    Wingspan12.00 m39 ft 4 in
    Length8.00 m26 ft 3 in
    Height3.15 m10 ft 4 in
    Wing area32.00 m2344.44 sq ft
 PERFORMANCE
    Max. speed250 km/h155 mph
