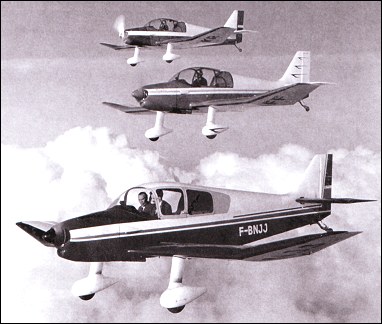

The DR.200 series was developed from the DR.100 series, and continued the familial resemblance to earlier Jodels. CEA succeeded Jodel and was renamed Avions Pierre Robin in 1969. The DR.200 (HR.200) series were progressively updated, then later replaced by R.2000 marques. Development of these touring, training and aerobatic types continues.
| MODEL | DR.221 Dauphin |
| CREW | 1 |
| PASSENGERS | 3 |
| ENGINE | 1 x 115hp Avco Lycoming O-235-C2A flat-four piston engine |
| WEIGHTS |
| Take-off weight | 840 kg | 1852 lb |
| DIMENSIONS |
| Wingspan | 8.72 m | 28 ft 7 in |
| Length | 7.00 m | 22 ft 12 in |
| Height | 1.85 m | 6 ft 1 in |
| Wing area | 13.60 m2 | 146.39 sq ft |
| PERFORMANCE |
| Max. speed | 205 km/h | 127 mph |
| Ceiling | 3900 m | 12800 ft |
| Range | 910 km | 565 miles |
|
