Robin DR.400, DR.500
1972
Back to the Virtual Aircraft Museum
  TOURING AIRCRAFTVirtual Aircraft Museum / France / Robin

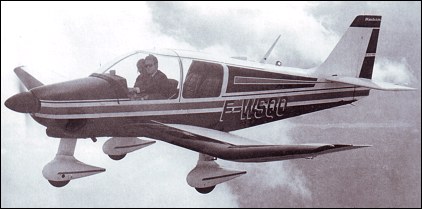

Robin DR.400, DR.500

The initial aircraft in the DR.400 series was the DR.400/125 Petit Prince, which showed its Jodel lineage by retaining the cranked-wing configuration, while offering a new four-seat cabin and a (fixed) tricycle landing gear. The more powerful Regent followed in 1972 along with the DR.400/160 Major, both replacements for DR.300 series types. Further variants were added in the form of the DR.400/180R Remo and the DR.400/120 Dauphin two-seat, and DR.400/140 four-seat Dauphin version. In 1997 the DR.500 President was derived from an updated DR.400L This and other versions of this popular light aircraft remain available, with over 1700 sales to date.

Robert Jackson "The Encyclopedia of Aircraft", 2004


Specification
 MODELDR.400/180 Regent
 CREW1
 PASSENGERS4
 ENGINE1 x 180hp Avco Lycoming O-360-A flat-four piston engine
 WEIGHTS
    Take-off weight1100 kg2425 lb
 DIMENSIONS
    Wingspan8.72 m28 ft 7 in
    Length6.96 m22 ft 10 in
    Height2.23 m7 ft 4 in
 PERFORMANCE
    Max. speed278 km/h173 mph
    Ceiling4715 m15450 ft
    Range1450 km901 miles
