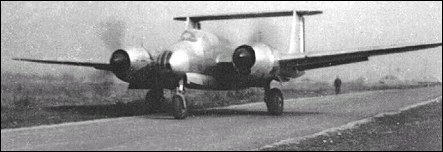

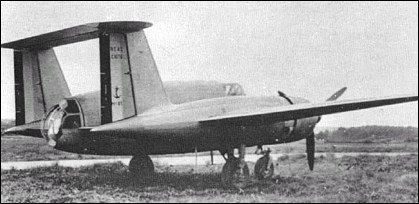

SNCAC NC.1070

The only prototype of the NC.1070 naval bomber flew for the first time on 23 April 1947. It was cancelled because the age of piston engines was over. Followed by turbojet-powered NC.1071.

SNCAC NC.1070


Specification
 CREW3
 ENGINE2 x 1600hp Gnome Rhone 14R-24/25 piston engines
 WEIGHTS
    Take-off weight10844 kg23907 lb
    Empty weight7850 kg17306 lb
 DIMENSIONS
    Wingspan20.00 m66 ft 7 in
    Length10.21 m34 ft 6 in
    Height4.15 m14 ft 7 in
    Wing area50.00 m2538.20 sq ft
 PERFORMANCE
    Max. speed578 km/h359 mph
    Cruise speed526 km/h327 mph
    Ceiling9950 m32650 ft
    Range3400 km2113 miles
 ARMAMENT4 x 20mm cannon, 800kg of bombs

3-View
SNCAC NC.1070A three-view drawing (800 x 510)

Comments
JP LAURENT, 30.03.2009

This aircraft ws niknamed "the shelf" !!
