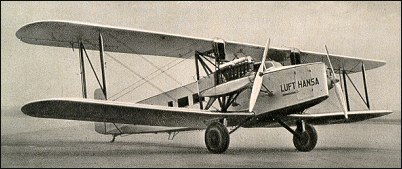

| Large and impressive eight-passenger biplane airliner of 1926. Powered originally by two 179kW BMW Va engines but subsequently fitted with 268kW BMW Vas. It is believed that four were built for Luft-Hansa, flying night sections of several domestic and international routes until the early 1930s.
| CREW | 2 |
| PASSENGERS | 8 |
| ENGINE | 2 x BMW IV, 280kW |
| WEIGHTS |
| Take-off weight | 4600 kg | 10141 lb |
| Empty weight | 1690 kg | 3726 lb |
| DIMENSIONS |
| Wingspan | 19.7 m | 65 ft 8 in |
| Length | 14.6 m | 48 ft 11 in |
| Height | 4.7 m | 15 ft 5 in |
| Wing area | 92.0 m2 | 990.28 sq ft |
| PERFORMANCE |
| Max. speed | 158 km/h | 98 mph |
| Cruise speed | 145 km/h | 90 mph |
| Ceiling | 3000 m | 9850 ft |
| Range w/max.fuel | 600 km | 373 miles |
| ubaTaeCJ, e-mail, 21.02.2025 16:21 20 reply | | Barry, 04.01.2010 17:17 Featuring reclining seats for all passengers this, for its time luxurious aircraft, was flown originally with Junkers L5 engines. Only 4 were produced two of which were later sold to Bulgaria. reply | | laureano, e-mail, 13.07.2007 20:25 deberia ser un bombardero reply |
|
