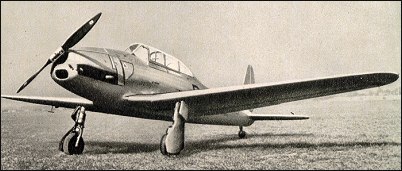

Tandem two-seat monoplane trainer with retractable landing gear. Powered by one 335kW Argus As.410A engine on Ar.96B production aircraft built from 1940 (prototype had one 179kW Argus As.10C). The Ar.199 was a development of the design.
 | A three-view drawing (1000 x 722) |
| CREW | 2 |
| ENGINE | 1 x As 410A, 340kW |
| WEIGHTS |
| Take-off weight | 1750 kg | 3858 lb |
| Empty weight | 530 kg | 1168 lb |
| DIMENSIONS |
| Wingspan | 11.0 m | 36 ft 1 in |
| Length | 9.1 m | 30 ft 10 in |
| Height | 2.6 m | 9 ft 6 in |
| Wing area | 17.1 m2 | 184.06 sq ft |
| PERFORMANCE |
| Max. speed | 330 km/h | 205 mph |
| Cruise speed | 275 km/h | 171 mph |
| Ceiling | 7000 m | 22950 ft |
| Range w/max.fuel | 990 km | 615 miles |
| ARMAMENT | 1-2 machine-guns |
