Aviatik D II

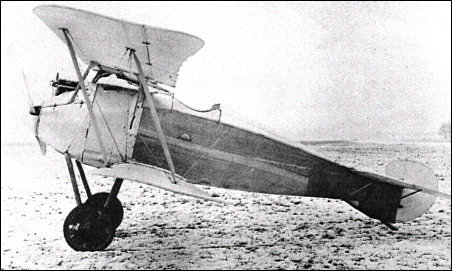

The Automobil und Aviatik AG of Leipzig-Heiterblick licence-built the Halberstadt D.II as the Aviatik D.I - later known as the Halberstadt D.II(Av) - before, in late 1916, developing and building an original single-seat fighter as the D.II. Powered by the 160hp Daimler D III six-cylinder water-cooled engine and carrying an armament of two synchronised 7.92mm LM-G 08/15 machine guns, the D.II was a staggered single-bay biplane with wooden, fabric-covered wings and a steeltube (forward) and wood (aft) fuselage largely ply covered. The Aviatik fighter did not find favour with the Idflieg and further development was discontinued, only the one prototype being built.

3-View

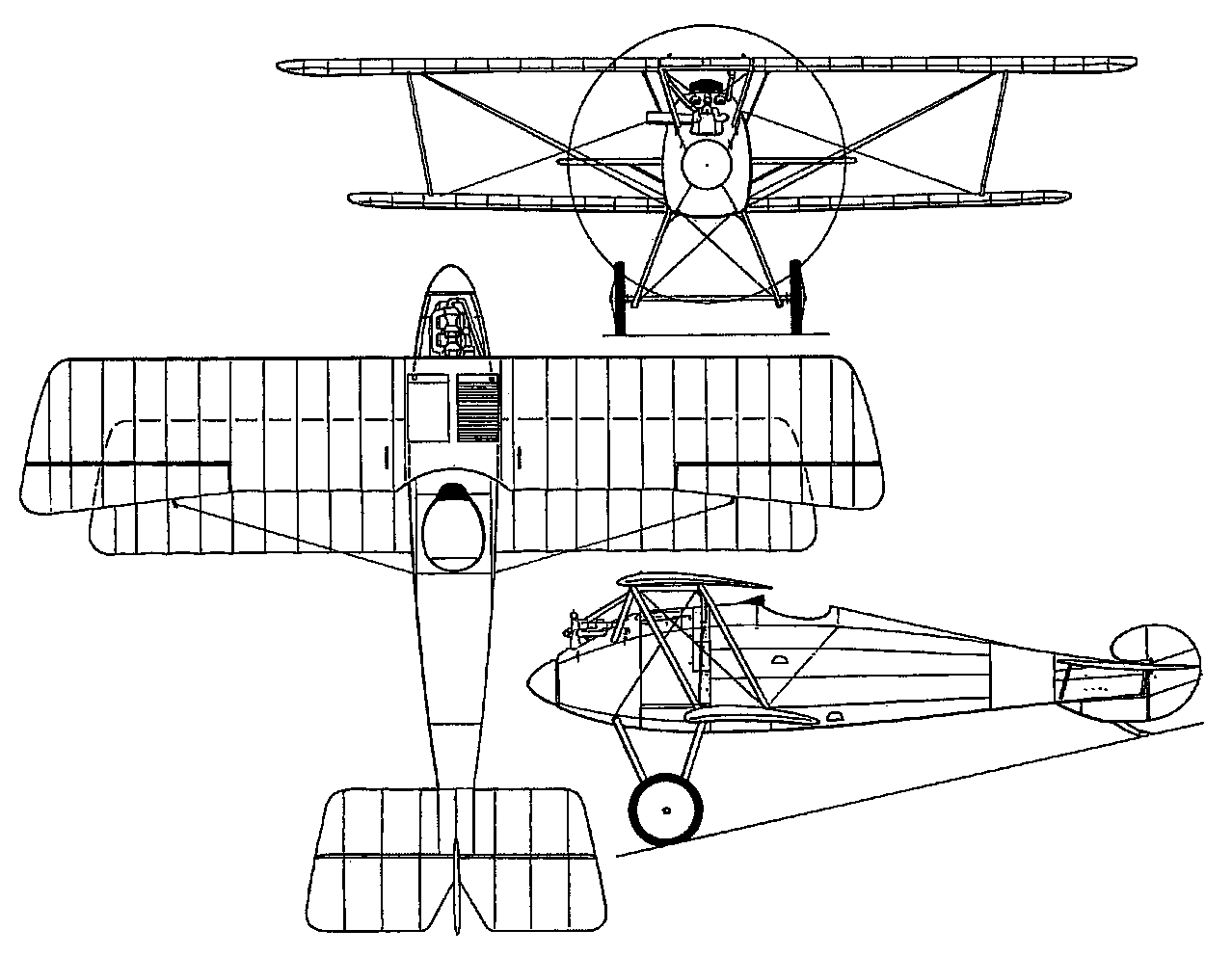

Aviatik D IIA three-view drawing (1278 x 992)


Specification
 MODELAviatik D.II
 CREW1
 ENGINE1 x 160hp Daimler D III
 DIMENSIONS
    Wingspan8.84 m29 ft 0 in
    Length6.82 m22 ft 5 in
    Height2.87 m9 ft 5 in
 PERFORMANCE
    Max. speed150 km/h93 mph
    Cruise speed125 km/h78 mph
    Rate of climb139 m/min450 ft/min
 ARMAMENT2 x 7.92mm
