Aviatik D VII

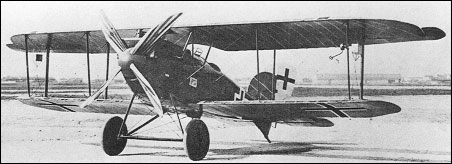

The D.VII, which was intended to participate in the third D-type Contest of October 1918, was essentially similar to the D.VI apart from having completely redesigned vertical and horizontal tail surfaces. Like its predecessor it was powered by a geared Benz Bz Illbm eight-cylinder Vee engine driving a four-bladed propeller. Armament comprised the standard twin 7.92mm synchronised machine guns, and only one prototype was completed.

W.Green, D.Swanborough "The Complete Book of Fighters", 2000

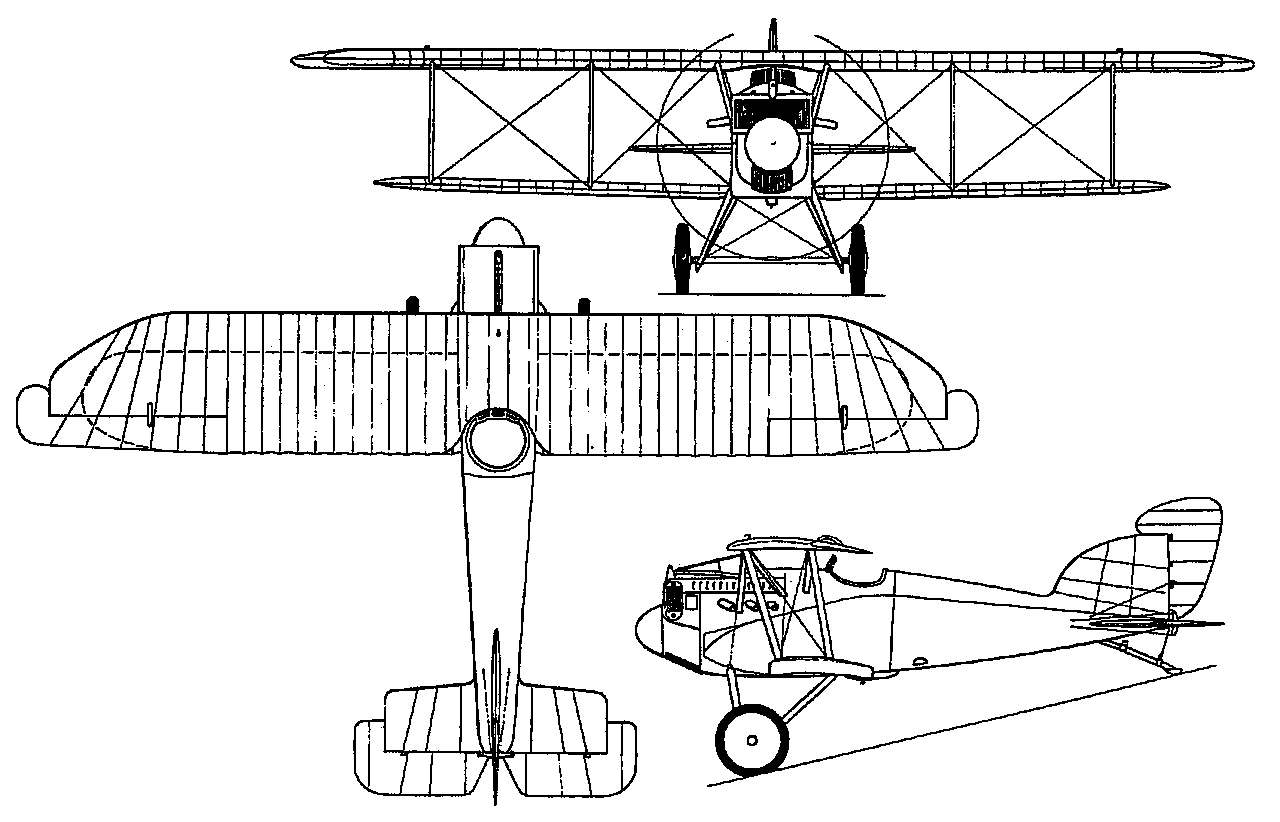

3-View
Aviatik D VIIA three-view drawing (1280 x 822)


Specification
 MODELAviatik D.VII
 CREW1
 ENGINE1 x 200hp Benz Bz IIIbm
 WEIGHTS
    Take-off weight945 kg2083 lb
    Empty weight745 kg1642 lb
 DIMENSIONS
    Wingspan9.66 m32 ft 8 in
    Length6.10 m20 ft 0 in
    Height2.50 m8 ft 2 in
 PERFORMANCE
    Max. speed192 km/h119 mph
    Cruise speed165 km/h103 mph
    Rate of climb250 m/min800 ft/min
 ARMAMENT2 x 7.92mm
