Dornier Spatz
1924
Back to the Virtual Aircraft Museum
  SCHOOL, SPORTVirtual Aircraft Museum / Germany / Dornier

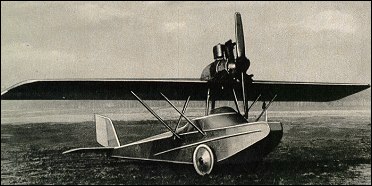

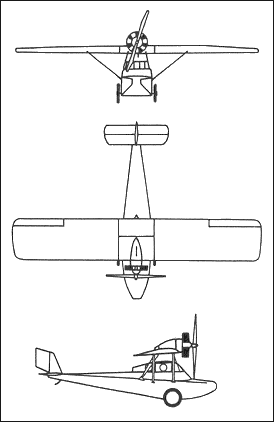

Dornier Spatz

Virtually a landplane version of the Dornier Libelle without the hull sponsons but with fixed tailskid landing gear; a 60kW Siemens-Halske engine was standard, but a 75kW engine and an open cockpit or enclosed cabin were optional

Dornier Spatz


Specification
 CREW1
 PASSENGERS2
 ENGINE1 x Sh-7, 59kW
 WEIGHTS
    Take-off weight800 kg1764 lb
    Empty weight490 kg1080 lb
 DIMENSIONS
    Wingspan9.8 m32 ft 2 in
    Length6.9 m23 ft 8 in
    Height2.8 m9 ft 2 in
    Wing area15.5 m2166.84 sq ft
 PERFORMANCE
    Max. speed141 km/h88 mph
    Cruise speed120 km/h75 mph
    Ceiling3500 m11500 ft

Comments
Keith Thompson, 24.04.2012

Could you tell me if the Dornier Spatz had a designation such as a letter or a nmber
Like Dornier CIII Or Dornier U or Dorner Y or an number like 9, 14, 16 etc etc.
Thank you very much for your kind service.
keith Thompson

huangdi, 20.06.2011

engine and an open cockpit or enclosed cabin were optional

, 20.06.2011

Dornier Spatz
1924

Barry, 11.01.2010

First flown 12/02/1922 some aircraft were powered by a Bristol Lucifer engine.
