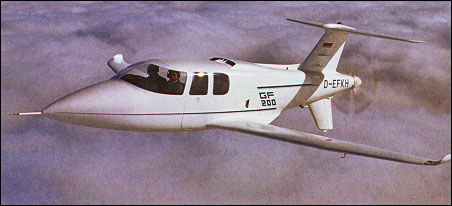

Grob GF 200

The GF 200 differs greatly from othe Grob designs in having its single pusher engine mounted in the rear of the fuselage, serving to reduce noise. Other features include winglets, a T tail and a retractable undercarriage.


Specification
 CREW2
 PASSENGERS4
 ENGINE1 x 233kW Teledyne Continental TSIOL550 turbocharged flat-six piston engine
 WEIGHTS
    Take-off weight1600 kg3527 lb
 DIMENSIONS
    Wingspan11.00 m36 ft 1 in
    Length8.70 m29 ft 7 in
    Height3.42 m11 ft 3 in
 PERFORMANCE
    Cruise speed370 km/h230 mph
    Ceiling7625 m25000 ft
    Range1850 km1150 miles

Comments
juankuan, 18.06.2011

Nach dem schweren Unfall vor zwei Jahren, bei dem der Chef-Testpilot ums Leben kam, gehts der Firma schlecht. Schade, die Segelflugzeuge sind klasse gewesen!

, 18.06.2011

airspeed changes.

Dudley Fort, 07.03.2010

The gliders are excellent but this plane almost bankrupted the company. see the poor translation below.

Unfortunately is the nearly broke. To the heavy accident before two years, in which the chief test pilot died, ' s of the company goes badly. Unfortunate, the gliders were class!

Danger Al, 18.01.2010

You can now visit this machine at Munich's great Deutches Museum. Its recip engine tended to overheat, so more cooling development was needed. It quite a big machine for a four-seater. Had a deep stall problem at full flap: test pilot Ulli Schell could recover by dropping a wing to slip out of the stall - or retract flaps. vertical fin originally had bother upper & lower rudders, but eventually went to lower only. Lack of countering prop wash left the engine torque as dominant feature, thus demanding roll trim changes with airspeed changes.

Volker Steiger, 01.10.2008

Leider sind die fast pleite. Nach dem schweren Unfall vor zwei Jahren, bei dem der Chef-Testpilot ums Leben kam, gehts der Firma schlecht. Schade, die Segelflugzeuge sind klasse gewesen!
