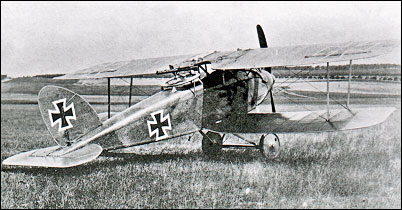

Halberstadt CL.II
1917
Back to the Virtual Aircraft Museum
  GROUND ATTACK AIRCRAFTVirtual Aircraft Museum / Germany / Halberstadt

Halberstadt CL.II

There is no text information for this aircraft at the moment.

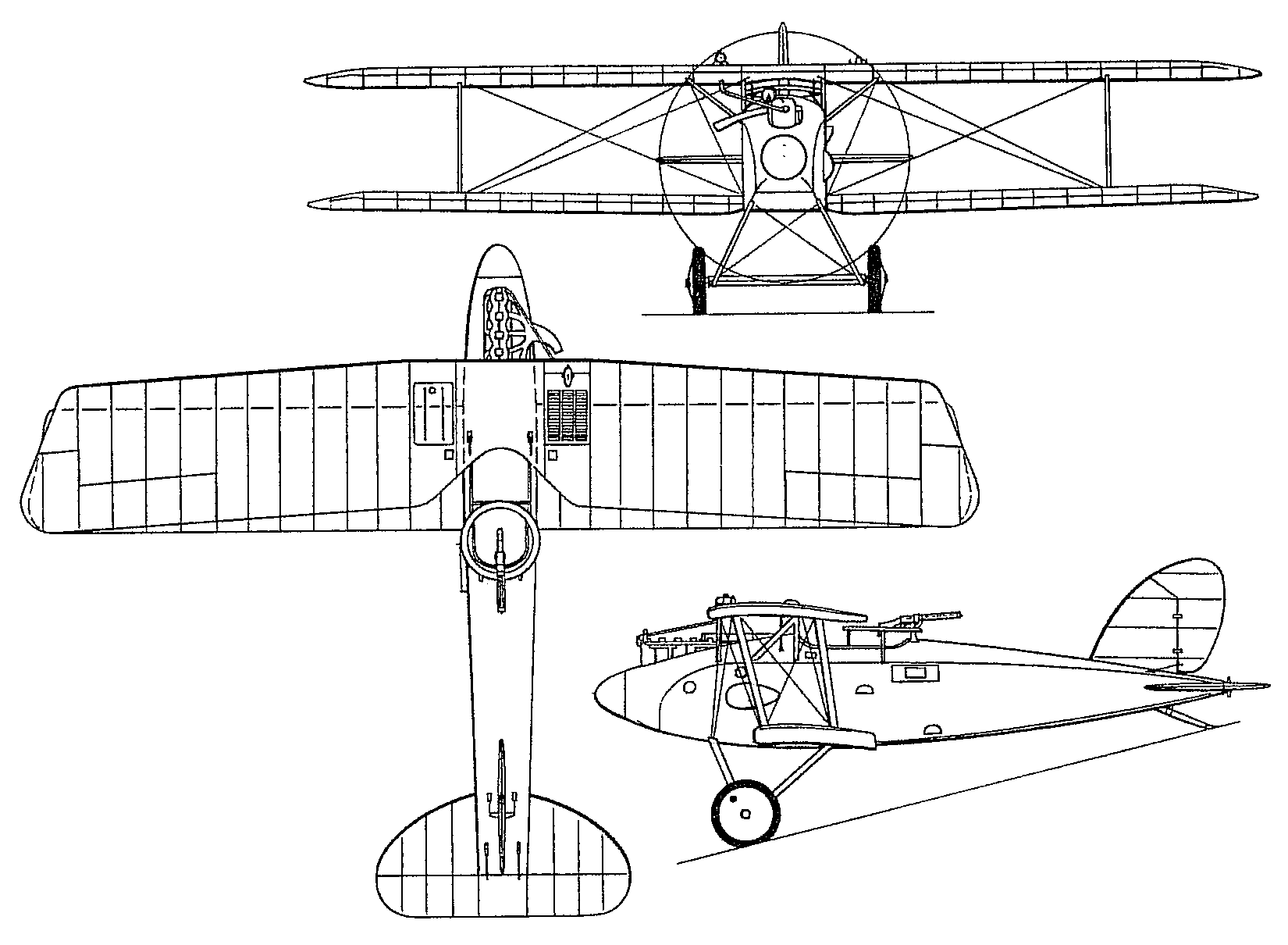

3-View
Halberstadt CL.IIA three-view drawing (1650 x 1210)


Specification
 CREW2
 ENGINE1 x 119kW Mercedes D.III water-cooled inline engine
 WEIGHTS
    Take-off weight1133 kg2498 lb
 DIMENSIONS
    Wingspan10.77 m35 ft 4 in
    Length7.30 m24 ft 11 in
    Height2.75 m9 ft 0 in
 PERFORMANCE
    Max. speed165 km/h103 mph
    Ceiling5100 m16750 ft
 ARMAMENT3 x 7.92mm machine-guns, 5 x 10kg bombs

Comments
Barry, 19.05.2016

Originally designated C II the designation was changed to CL II to fall in line with the "Idfleig" requirement for a light type C fighter for the "Luftstreitkrafte", which would be used to escort reconnaissance aircraft. The so called "Schutzstaffeln" or protection flights. The first flight was in 1917 and Halberstadt produced some 700, a further 200 were manufactured in 1918 by Bayerische Flugzerke Werke (BFW). Post war ex German machines were flown by both the Lithuanian Air Force and the Polish Air Force. In fact the last surviving example, the personal mount of General Ernst von Hoeppner, is in the Polish Aviation Museum Cracow (Kracow).

kuaican, 20.06.2011

Hi, I'm looking for some maufacturing drawing for the Halberstadt D.V. Could you give me a bit of help with this request

, 20.06.2011

Halberstadt CL.II
1917

Ali Baran Çelik, 24.05.2010

Hello, I intend to start scratchbuilding a 1:34 scale CLII, I would really appreciate any sort of manufacturing data regarding dimensions.
Cheers

Bill Foster, 17.03.2008

Hi, I'm looking for some maufacturing drawing for the Halberstadt D.V. Could you give me a bit of help with this request?

Have a G'Day, Bill Foster
